Honeywell T775B2032/U Electronic Stand-Alone Controller Power 24/120/240VAC Replacement MPN T775B2032/U

Product Description

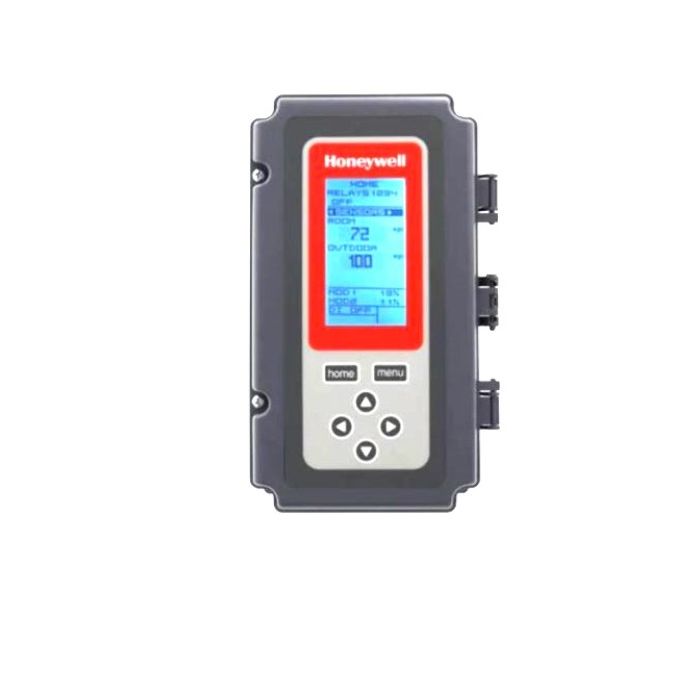

The Honeywell T775B2032/U is an electronic stand-alone controller designed for efficient temperature control. It features two SPDT relay outputs and two sensor inputs for versatile applications. This product operates on 24, 120, or 240 VAC and is suitable for various HVAC systems.

• Configurable with easy-to-use graphical interface
• NEMA 1 enclosure for protection in diverse environments
• Internal time clock scheduler for enhanced control

Product Highlights

This controller supports up to two independent modulating outputs and is capable of high or low limit control. It also includes optional configurable integral and derivative times, making it adaptable to different installation needs.

Product Information

Standard Information

• Brand: Honeywell
• MPN: T775B2032/U

Technical Specifications

• Power: 24, 120, or 240 VAC
• Operating Conditions: -40 F to 125 F (-40 C to 52 C), RH: 5% to 95% Non-Condensing
• Approvals: UL 60730-1 for US and Canada
• Enclosure: NEMA-1
