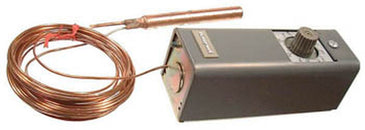

HONEYWELL T675B1002/U TEMP CONTROLLER 30F-50F RANGE

Product Description

The HONEYWELL T675B1002/U is a remote temperature controller designed for use in commercial applications. This unit regulates the temperature of air or liquids in various environments such as ducts, pipes, tanks, and boilers.

• Temperature control for air or liquids.
• Fast response models available.
• Mountable in any position.

Product Highlights

The T675B1002/U features a setpoint temperature range from thirty degrees Fahrenheit to fifty degrees Fahrenheit. It uses a copper bulb sensor and includes a ten-foot capillary for remote installations.

Product Information

Standard Information

• Manufacturer: HONEYWELL
• MPN: T675B1002/U

Technical Specifications

• Application: Regulates temperature of air or liquids in ducts, pipes, tanks and boilers
• Dimensions: Five and five-eighths inches high x two inches wide x two and five-eighths inches deep
• Frequency: 50 Hz; 60 Hz
• Voltage: 120 Vac or 240/277 Vac
• Setpoint Temperature Range (F): 30 F to 50 F
• Operating Temperature Range (F): Maximum 125 F
• Output relay: 1 SPDT
• Capillary Length: ten feet
