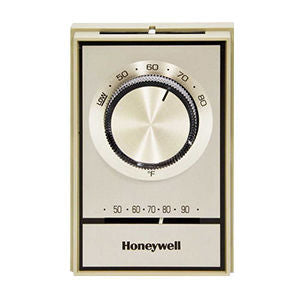

Honeywell T498A1778/U T498A Line Voltage Non-Programmable Thermostat 40 - 80 deg F

Product Description

The Honeywell T498A1778/U is a line voltage non-programmable thermostat designed for controlling temperatures between forty and eighty degrees Fahrenheit. This model features a three-degree differential and uses a snap-acting SPST switch. It is suitable for applications requiring robust temperature management such as convectors, electric baseboards, and fan forced heaters.

• Easy installation with color-coded leads
• Includes range stops and a locking cover
• Vertical mounting option available

Product Highlights

The Honeywell T498A1778/U offers reliable temperature control with a bi-metal sensor and a hardwired power source.

Product Information

Standard Information

• Manufacturer: Honeywell
• Power Source: Hardwired

Technical Specifications

• Control Range: 40 - 80 deg F
• Differential: +/-3 deg F
• Switch Type: SPST
• Sensor Type: Bi-Metal
• Voltage Rating: 120/227 VAC, 60 Hz
• Number of Stages: 1
• Full Load Current: 19 - 22 A
• Dimensions: 4-9/16 Inch L x 2-7/8 Inch W x 1-15/16 Inch H
• Mounting Type: Vertical
• Series: T498A
