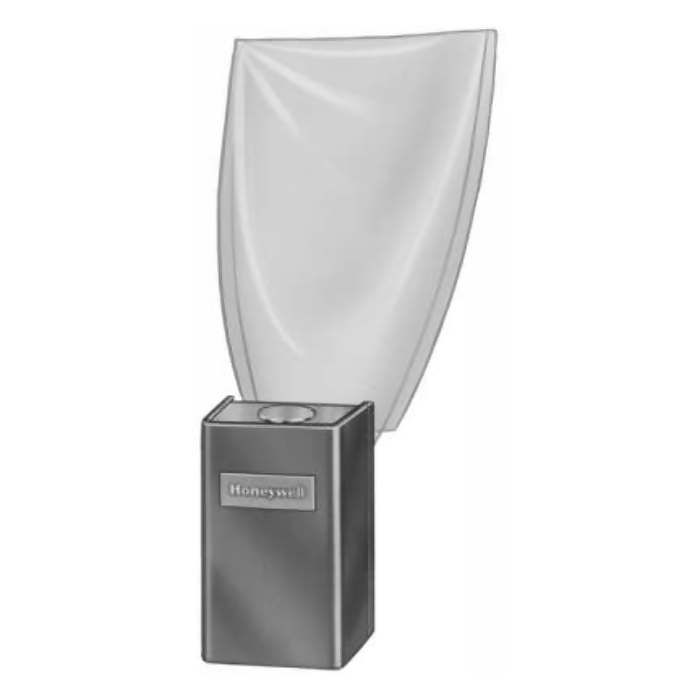

Honeywell S688A1007/U Sail Switch (10 in insertion length)

Product Description

The Honeywell S688A1007/U sail switch is an airflow-activated SPDT micro snap switch assembly that senses low air velocities for HVAC and fan control applications. It makes at 250 fpm and breaks at 75 fpm and uses a polyester film sail on a 10 in. insertion. A removable spring counterbalance permits vertical or horizontal mounting and top and bottom conduit knockouts simplify wiring for multi-speed fans and inaccessible air handlers.

• SPDT switching with make at 250 fpm and break at 75 fpm for low-velocity airflow detection
• 10 in. insertion length with polyester film sail mounted on a micro snap switch
• Removable spring counterbalance for vertical or horizontal mounting; top and bottom conduit knockouts for wiring

Product Highlights

Airflow-actuated SPDT sail switch; 10 in insertion; make 250 fpm / break 75 fpm; polyester film sail; vertical or horizontal mounting.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: S688A1007/U

Technical Specifications

• Brand: Honeywell
• MPN: S688A1007/U
• Model / Part #: S688A1007/U
• Switch Type: SPDT (single pole double throw)
• Operating Air Velocity: Make at 250 fpm; break at 75 fpm
• Insertion Length: 10 in.
• Sail Material: Polyester film
• Mounting: Removable spring counterbalance allows vertical or horizontal mounting
• Conduit Knockouts: Top and bottom for wiring convenience
• Mounting Type: Insertion
• Dimensions (L x W x H): 4.4 in x 12.05 in x 2.8 in
• Weight: 0.8 lb
• Product SKU: S688A1007/U
• Reference ID: HONEYWELLS688A1007U
