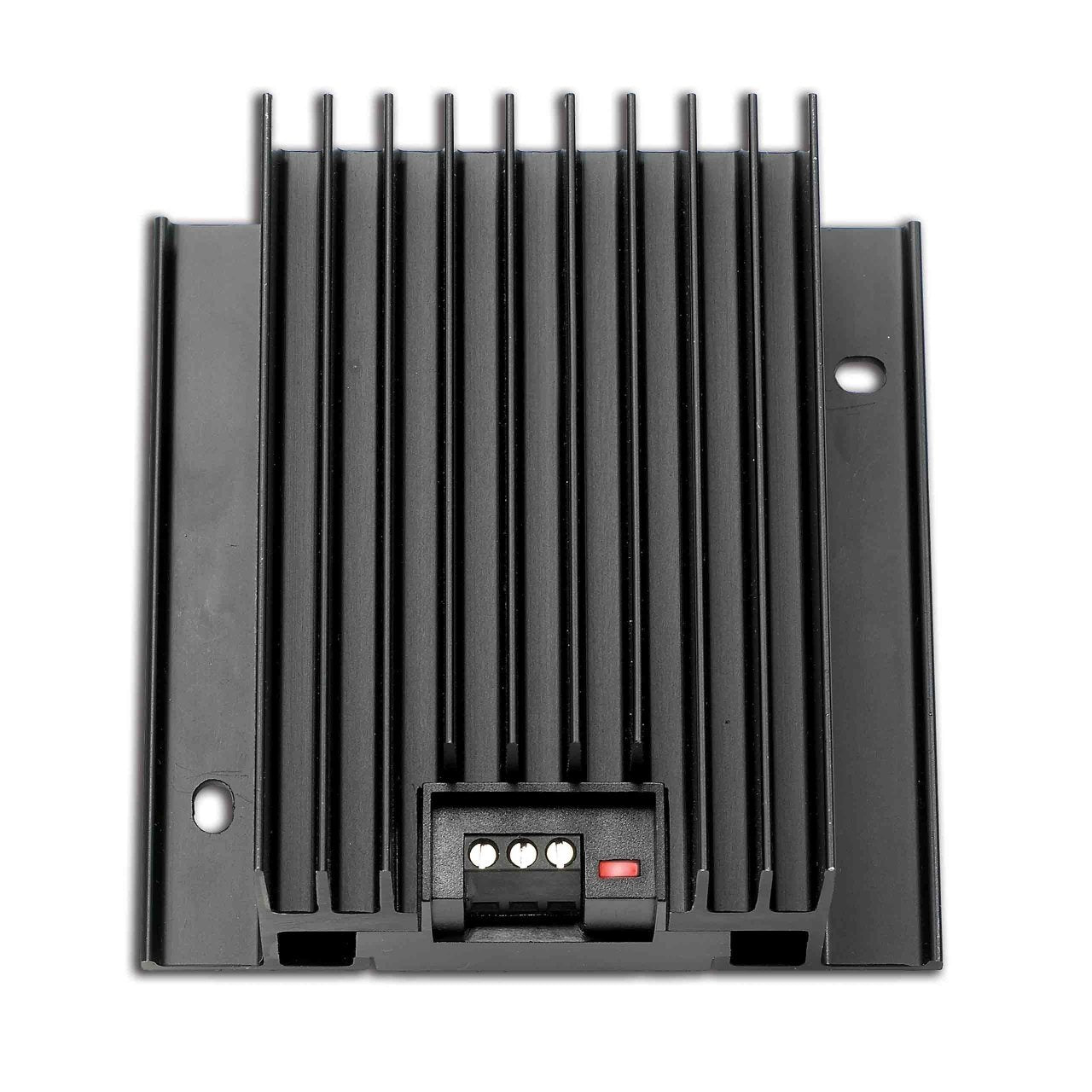

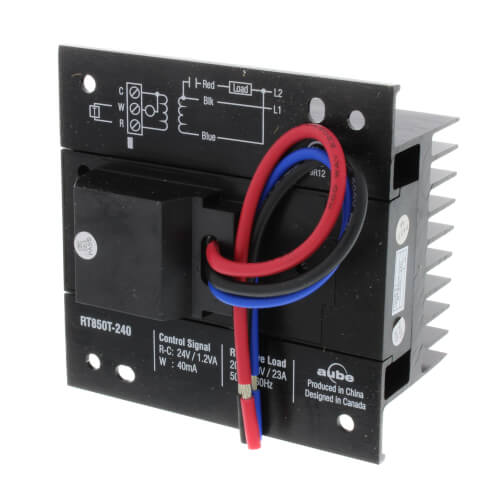

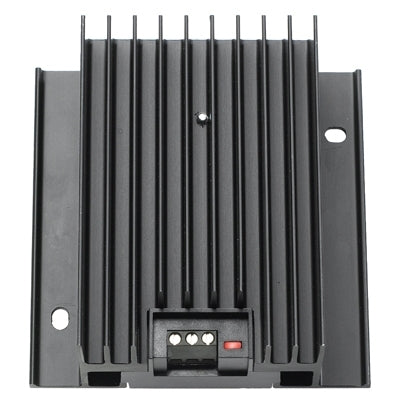

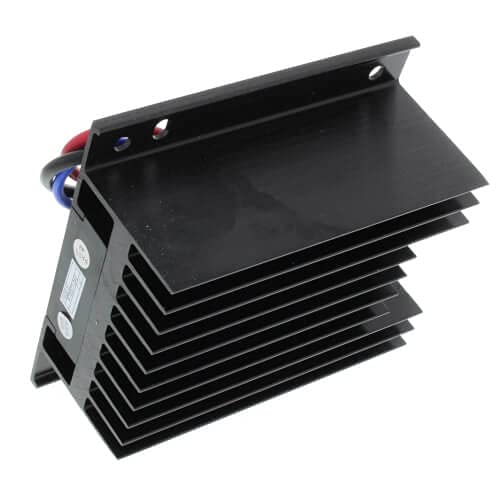

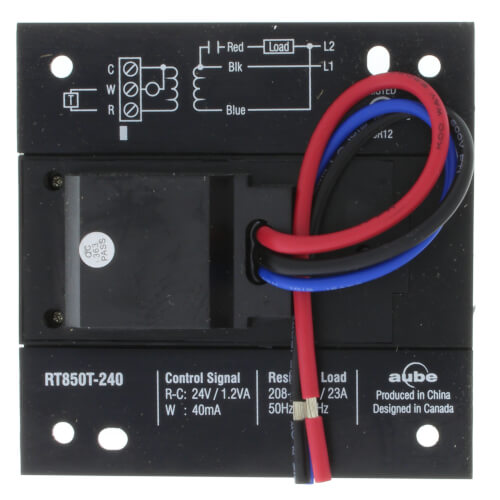

Honeywell RT850T-240 Solid State Relay with 24-240 V Built-in Transformer

Product Description

The Honeywell RT850T-240 solid state relay is designed for accessory power applications in the automotive industry. It features a built-in transformer and operates within a voltage range of 24-240V. Designed to control a line-voltage resistive load from a 24 VAC control signal or from signal sources of 4 to 32 VDC.

• Built-in 24 V transformer for easy installation
• Compatible with 24 V thermostats with 2-wire connections (R, W) or 3-wire connections (R, W, C)
• Enables superior temperature control when used with 15-second cycle thermostats

Product Highlights

The relay is equipped with an LED for visual confirmation of load switching and can be used with short-cycled thermostat to provide precise temperature control.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: RT850T-240
• Country of Origin: United States

Technical Specifications

• Application: Solid State Relay
• Used With: TH114-A-024T-15S; TH115-A-024T-15S; TH150 Series
• Compatible With: 2 and 3 wire thermostats
• Frequency: 50 Hz; 60 Hz
• Voltage: 240/24V
• Operating Humidity: 0% to 95% (non-condensing)
• Max Temp (F): 140 F
• Min Temp (F): -40 F
• Ambient Relative Humidity (Min): 0
• Ambient Relative Humidity (Max): 95% Non-condensing
