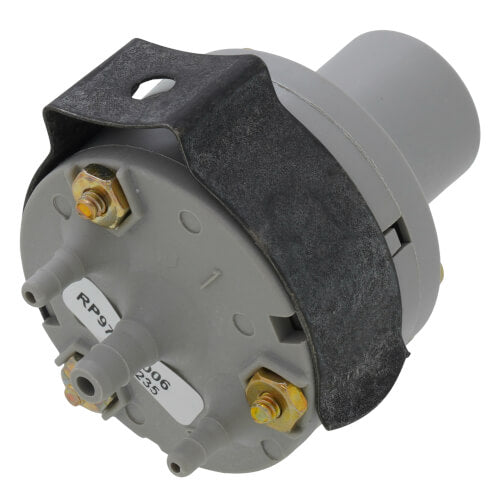

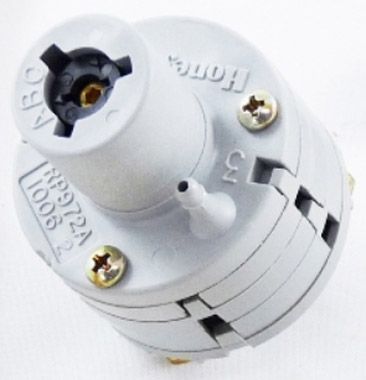

Honeywell RP972A1006 Reversing Relay 18 psi Main 3-15 psi Pilot

Product Description

The Honeywell RP972A1006 Reversing Relay is essential for industrial control systems. This pneumatic relay switches current flow direction in circuits, reversing motor rotation or controlling solenoid valves.

• Durable construction for harsh environments
• Switches AC and DC loads
• Multiple coil voltage options

Product Highlights

This relay, with its rugged design and versatile switching, is a reliable choice for diverse applications across manufacturing, automation, and process control industries. It is compact and easy to install.

Product Information

Standard Information

• Brand: Honeywell
• Model: RP972A
• MPN: RP972A1006

Technical Specifications

• Type: Pneumatic, Four Port Ratio Relay
• Action: Direct Acting
• Output Span: 3 to 13 psi
• Pilot Input Span: 5 psi input span for 3 to 13 psi output
• Air Connections: Main 1/4 in. OD tubing, Others 5/32 in. OD tubing
• Maximum Safe Operating Pressure: 30 psi
• Temperature Range: 0 F to 140 F
• Mounting: Wall, In-Line or panel
• Airflow Usage: 0.002 scfm
• Construction: Neoprene Diaphragms, Stainless Steel Valve Seats
