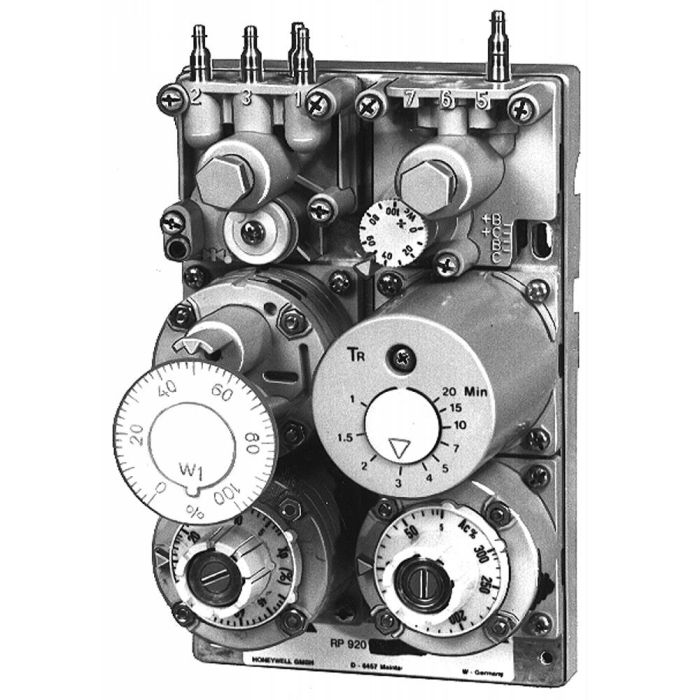

Honeywell RP920B1031/U Pneumatic Temperature Controller

Product Description

The Honeywell RP920B1031/U is a pneumatic temperature controller designed for precise temperature control in various HVAC applications. This controller functions as both a direct and reverse acting unit, with options for dual inputs. It is engineered to provide proportional control of temperature and pressure.

• High accuracy with miniature diaphragm technology.
• Field-convertible from direct to reverse acting.
• Includes options for local and remote set points.

Product Highlights

This pneumatic temperature controller is suitable for both commercial and residential applications allowing enhanced control over heating and cooling units, ensuring operational efficiency.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: RP920B1031/U

Technical Specifications

• Application: Proportional pneumatic controller
• Dimensions: 5 7/8 inches high x 3 13/16 inches wide x 3 1/4 inches deep without cover
• Operating Pressure: Maximum safe operating pressure of 30 psi
• Temperature Range: 40°F to 130°F
• Humidity Range: 5 to 95% RH
• Airflow Usage: 0.07 scfm at 1 psi pressure drop
• Sensor Inputs: Dual inputs
• Field Adjustment: Local or remote set point
