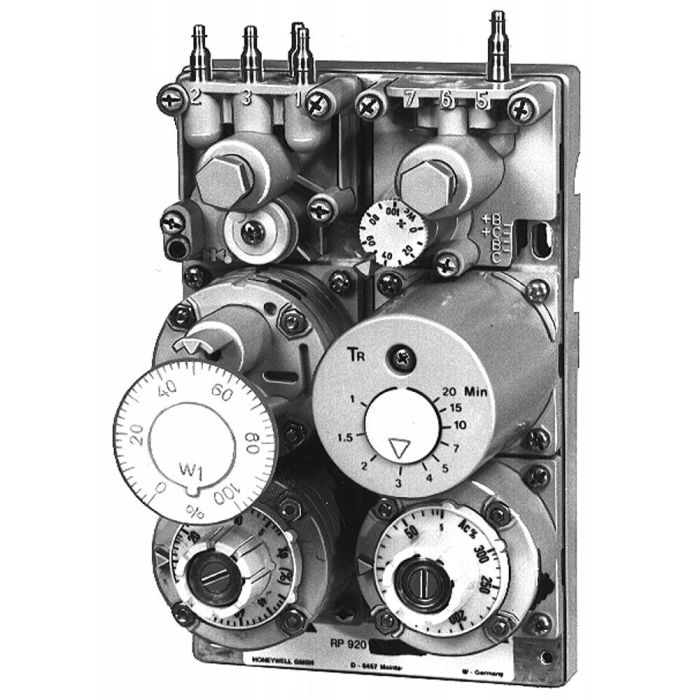

Honeywell RP920B1023/U Pneumatic Temperature Controller

Product Description

The Honeywell RP920B1023/U is a pneumatic temperature controller designed for commercial building applications. This device is suitable for use with direct and reverse acting functions. It operates effectively with remote sensors, providing accurate control of temperature, humidity, pressure, and dewpoint.

• Proportional plus integral control option minimizes offset.
• Field adjustable compensation start point.
• Corrosion resistant construction for durability.

Product Highlights

This product features miniature diaphragm technology, ensuring high accuracy and reliability. It can be converted from direct acting to reverse acting on site.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: RP920B1023/U

Technical Specifications

• Application: Proportional pneumatic controller
• Airflow Usage: 0.07 scfm (33.0 mL/s) at 18 psi main air supply
• Dimensions: 5 7/8 inches high x 3 13/16 inches wide x 3 1/4 inches without cover
• Maximum Safe Operating Pressure: 30 psi
• Temperature Range: 40 F to 130 F
• Connections: Combination 5/32 inch by 1/4 inch barb
• Operating Humidity Range: 5 to 95% RH
• Number of Sensor Inputs: Dual
• Remote Control Point Adjustment: Yes
