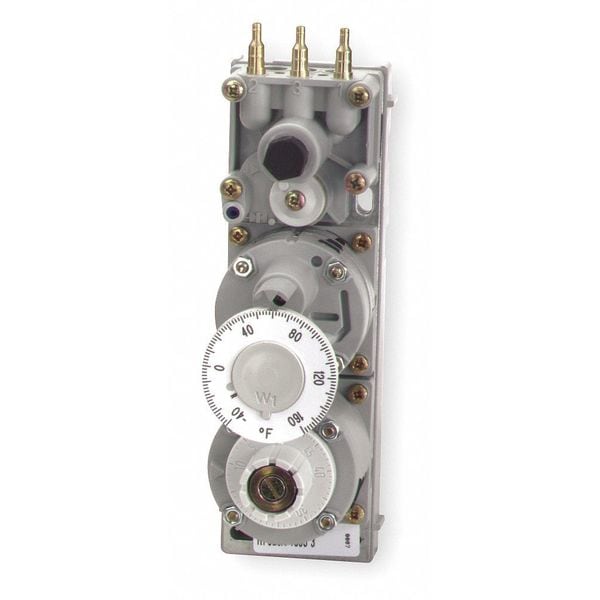

HONEYWELL RP920A1033/U CONTROLLER PPK

Product Description

The HONEYWELL RP920A1033/U is a pneumatic controller designed for commercial building applications. This device uses direct action to manage temperature, humidity, pressure, or dew point through the integration of remote sensors. It supports both proportional and proportional plus integral control methods, making it versatile for various HVAC needs.

• High accuracy and reliability via miniature diaphragm technology.
• Field adjustable compensation and conversion from direct to reverse acting.
• Corrosion-resistant construction for durability.

Product Highlights

This pneumatic controller is ideal for HVAC environments, providing efficient control over climate variables. It is well-suited for both new installations and retrofits.

Product Information

Standard Information

• Application: Proportional pneumatic controller
• Manufacturer: HONEYWELL

Technical Specifications

• Airflow Usage: 0.07 scfm (33.0 mL/s) at 1 psi pressure drop
• Dimensions: 5 7/8 inches high x 3 13/16 inches wide x 3 1/4 inches without cover, 3 3/8 inches deep with cover
• Maximum Safe Operating Pressure: 30 psi (207 kPa)
• Temperature Range: 40°F to 130°F (5°C to 55°C)
• Operating Humidity Range: 5% to 95% RH
• Connection Size: Combination 5/32 inches by 1/4 inches barb
• Input Signal: 3 to 15 psi; Output: 3 to 13 psi
• Number of Sensor Inputs: Single
