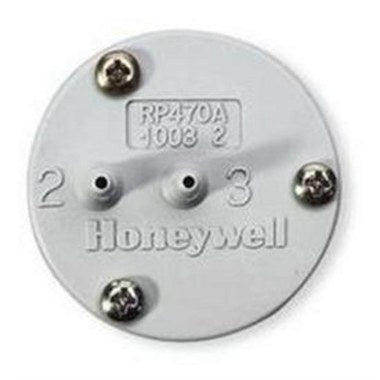

Honeywell RP470A1003/U Pneumatic Relay

Product Description

The Honeywell RP470A1003/U is a pneumatic relay used in HVAC systems. It transmits the higher of two input pressures.

• Uses diaphragm-logic technology
• Can be mounted in-line, on a wall, or on a panel
• Features sharp-barb air connections

Product Highlights

This relay is designed for various relay functions in HVAC applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• Category: Hydronics, HVAC, & Refrigeration

Technical Specifications

• Application: Pneumatic Three-port Selector Relay
• Dimensions: One and one-half inches diameter x one inch deep
• Maximum Safe Operating Pressure: 30 psi (205 kPa)
• Temperature Range: Zero to 140 degrees Fahrenheit (-18 to +60 degrees Celsius)
• Mounting: Wall, in-line, or panel
• Operating Humidity Range: 5 to 95% RH
• Air Connections: Barb fittings for five thirty-seconds inch O.D. plastic tubing
• Operation: Higher-of-two-pressures selector relay
