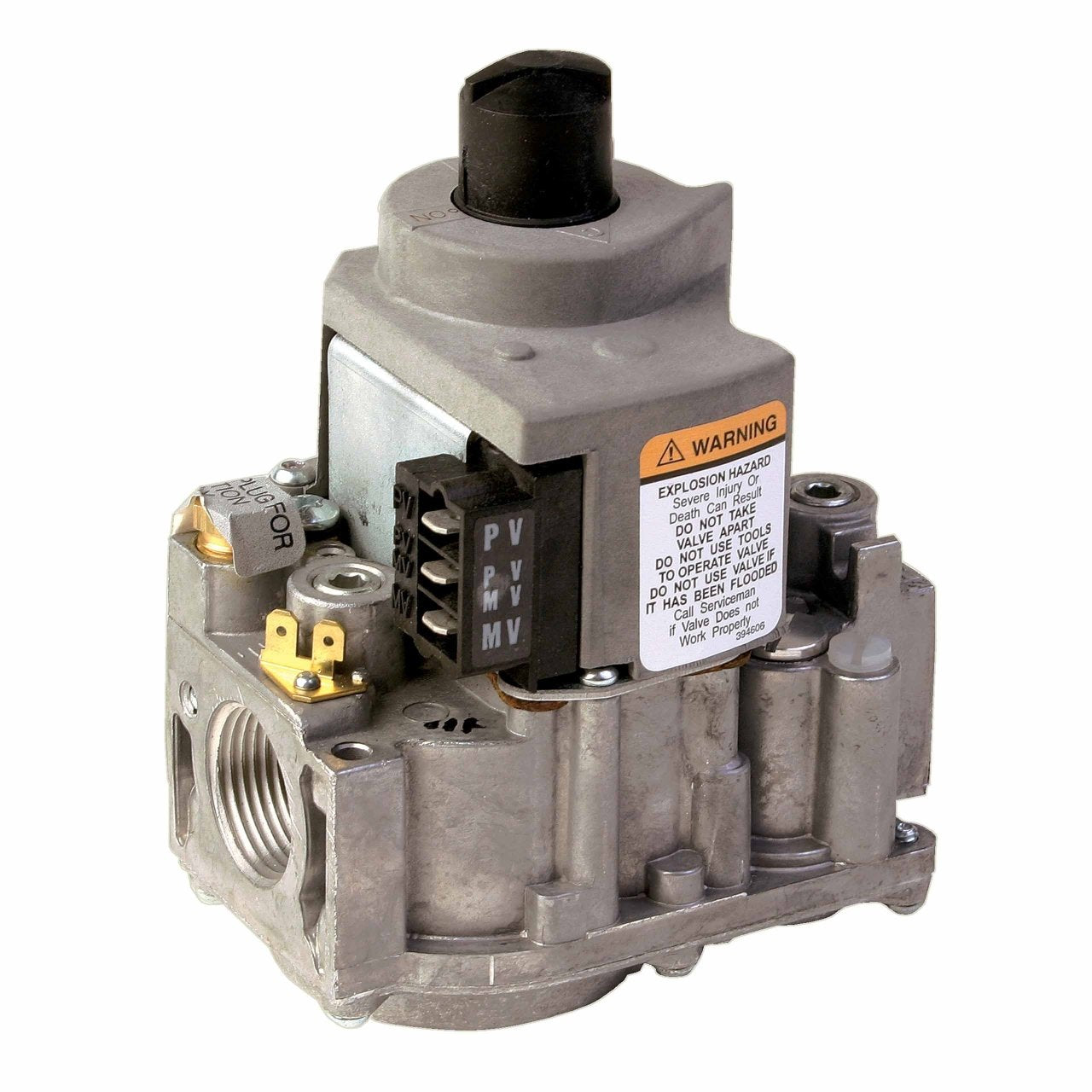

Honeywell Residential VR8304Q4511 Intermittent Gas Valve 3/4 X 3/4

Product Description

The Honeywell Residential VR8304Q4511 is a 24V intermittent gas valve with a 3/4" x 3/4" connection size. Designed for gas-fired appliances with capacities from 30 to 415 cfh, it features a low inlet pressure of 1.7" WC and a high inlet pressure of 3.5" WC. It includes a 396021 LP cover kit and 390427A reducer bushings.

• Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment
• Compact size
• Two automatic valves

Product Highlights

This valve is ideal for use in various gas-fired appliances, including furnaces, boilers, and water heaters. Its compact design allows for easy installation.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: VR8304Q4511

Technical Specifications

• Brand: HONEYWELL RESIDENTIAL
• MPN: VR8304Q4511
• Application: Two-Stage Standard Opening Valve for Intermittent Pilot
• Ignition Type: Intermittent Pilot
• Type of Fuel: Natural Gas
• Capacity (Min): 30,000 BTU/h
• Operating Voltage: 24 V AC
• Inlet Connection Size: 3/4 in
• Outlet Connection Size: 3/4 in
• Regulation Type: Standard Opening
• Pressure Rating: 1/2 psi, 3.5 kPa
• Operating Pressure (Max): 1/2 psi
• For Use With: S86F Control Module, S86H Control Module, S860D Control Module, S8600F Control Module, S8600H Control Module, S90A Control Module, S90B Control Module
• Includes: Natural to LP Conversion Kit, Two 3/4 in x 1/2 in Reducer Bushings
• Valve Body Pattern: Straight Through
• Ambient Operating Temperature (Max): 175 °F, 79 °C
• Ambient Operating Temperature (Min): -40 °F, -40 °C
• Approvals and Standards: UL Component Recognized, CSA International: 112395
• Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
• Pilot Gas Outlet: Compression Fitting for 1/4 in OD Tubing
• Product Height: 5.38 in, 135 mm
• Product Width: 2.69 in, 69 mm
• UPC: Does Not Apply
• Condition: New
• Manufacturer: Resideo
• Product: Gas Control Valve
• Temperature Rating: 175 °F, 79 °C
• Electrical Voltage: 24VAC, 50/60Hz
• Use: Gas
• Product Line: VR8304
• Gas Type: Natural Gas
• Opening Characteristic: Standard
• Gas Conversion Kit: Not Convertible
• Voltage: 24 Volts
• Frequency: 60 Hz
• Supply Connection: 3/4 Inch
• Return Connection: 3/4 Inch
• Product Length: 4 1/16 Inches
• UL Listed: Yes
• American Gas Association Certification: Yes
• Canadian Gas Association Certification: Yes
• Parts Warranty: 1 Year
