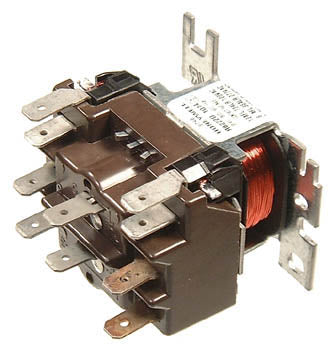

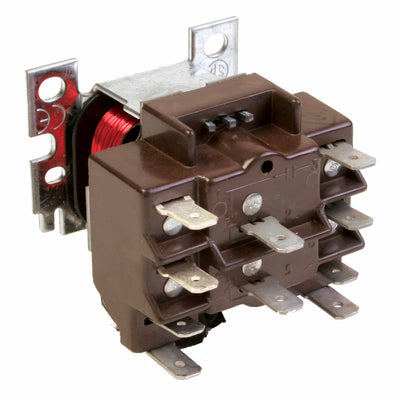

Honeywell Residential R4222N1002 Dpdt Relay Pilot Duty 120V Coil

Product Description

The HONEYWELL RESIDENTIAL R4222N1002 DPDT Relay Pilot Duty 120v Coil is designed for versatile and reliable control applications in industrial and commercial settings. This relay features a pilot duty 120V coil and manages electrical circuits with precision. It is suitable for refrigeration, heating, air conditioning equipment, appliances, and vending machines.

• Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation
• Untaped coil assures cooler operation
• Laminated magnet construction for higher efficiency

Product Highlights

The Honeywell R4222N1002 relay provides heavy-duty switching with a 120V coil, ideal for industrial automation, lighting control, and HVAC systems.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: R4222N1002

Technical Specifications

• Item Number: R4222N1002
• Brand: HONEYWELL RESIDENTIAL
• Product Line: R4222
• UPC: 085267075961
• Maximum Load - AFL: 12 Amps
• Maximum Load - Resistive: 20.8 Amps
• Voltage: 120 Volts
• Phase: 1
• Frequency: 50/60 Hz
• Product Height: 1.875 Inches
• Product Width: 2.167 Inches
• Product Length: 2.375 Inches
• UL Listed: Yes
• CSA Listed: Yes
• Parts Warranty: 1 Year
