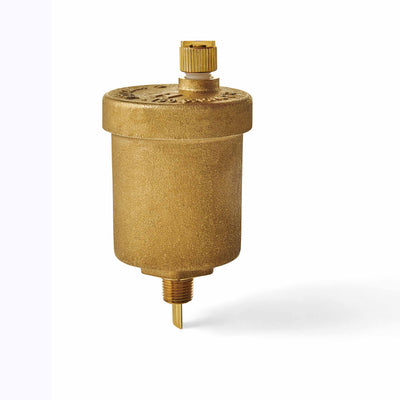

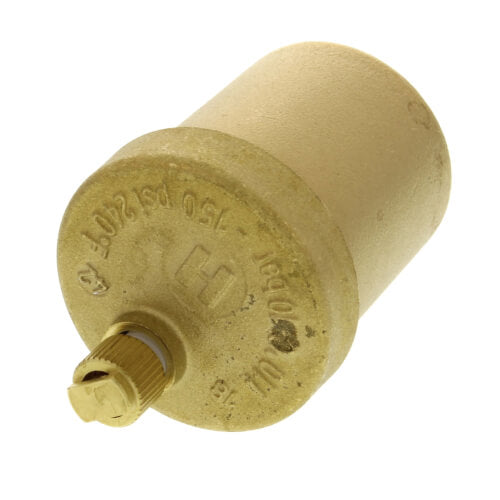

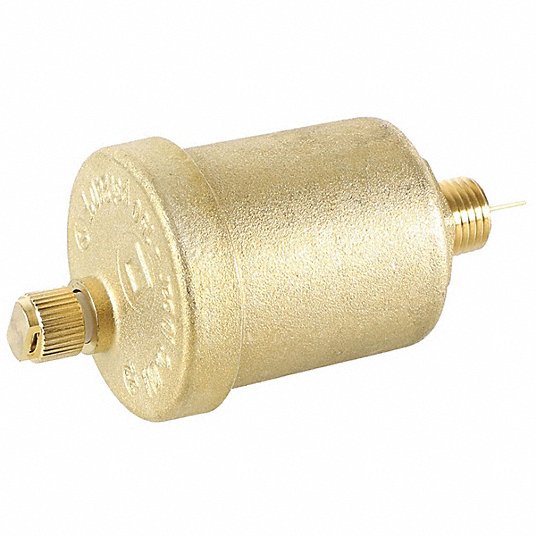

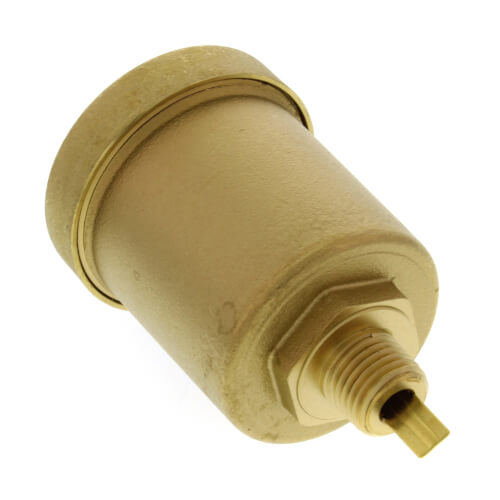

Honeywell Residential FV180A Float Type Automatic Air Vent 150 PSI 240F

Product Description

The HONEYWELL RESIDENTIAL FV180A is a 1/4" NPT float type automatic air vent with a maximum pressure of 150 PSI and a maximum temperature of 240F. It is designed for residential or commercial heating and cooling systems. This air vent connects to hydronic HVAC systems and vents non-condensable gases vertically out of the top ports.

• Float Type Automatic Air Vent
• 1/4" NPT Connection
• Maximum pressure of 150 PSI and a maximum temperature of 240F

Product Highlights

The FV180A Goldtop Universal Air Vent is suitable for residential or commercial heating and cooling systems.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: FV180A
• Country of Origin: Slovakia (subject to change)

Technical Specifications

• Type: Automatic Air Vent
• Connection Size: 1/4"
• Connection Type: NPT
• Maximum Pressure: 150 PSI
• Maximum Temperature: 240F
• Item Number: FV180A
• Brand: HONEYWELL RESIDENTIAL
• System Type: Hydronic (Water)
• Material: Brass
• Thread Type: Male
• Body Pattern: Straight
• Product Type: Air Vent
• Application: Air Ventilation; Hydronic Cooling Systems; Hydronic Heating Systems; Light Commercial; Residential
• Relief Port Location: Top
• For Media: Water
• Inlet Port Location: Bottom
• Inlet Pipe Size: 1/4 in
• Inlet Gender: Male
• Air Vent Type: Float
• Max. Operating Temp.: 240 °F
• Max. Operating Pressure: 150 psi
• Number of Outlet Ports: 1
• Number of Inlet Ports: 1
• Port Types Included: Inlet; Outlet
• Manufacturer Part Number: FV180A
