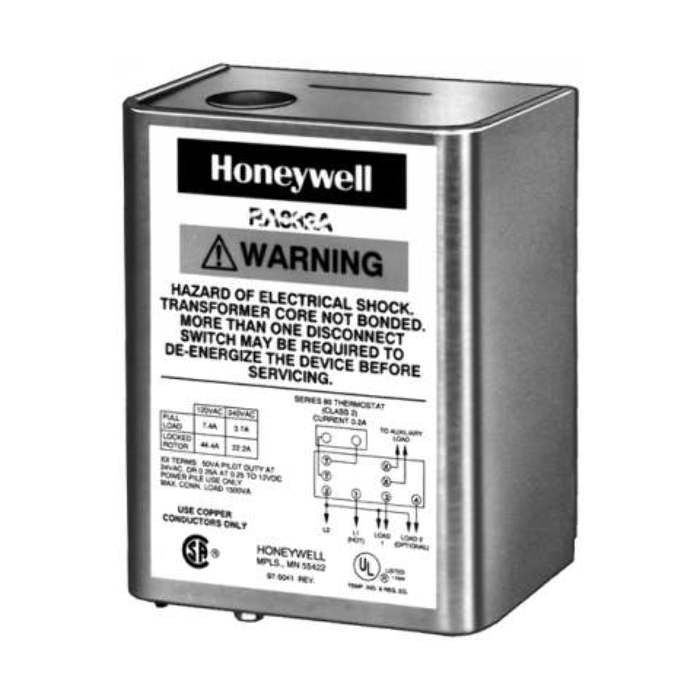

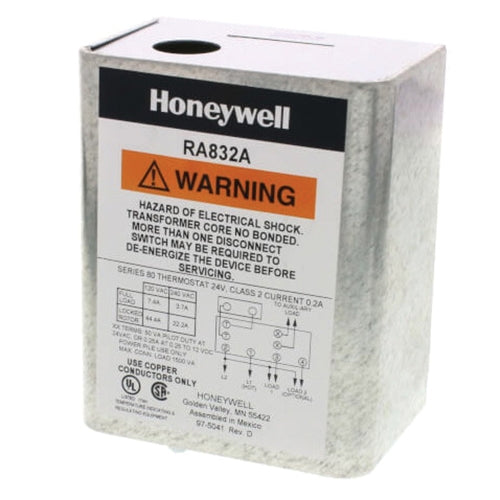

Honeywell RA832A1066/U Hydronic Switching Relay 24VAC Coil Rating 2-Zone 120V

Product Description

The Honeywell RA832A1066/U is a hydronic switching relay designed for effective management of heating systems. This relay features a dual pole, single throw (DPST) configuration and operates with a 24 volt alternating current (VAC) coil rating. The relay includes an integral transformer for providing low voltage power, making it suitable for both line voltage and low voltage applications.

• Integral transformer for low voltage power
• 24 VAC coil rating for versatile operation
• Two separate loads can be managed

Product Highlights

This relay offers efficient control for hydronic heating, suitable for residential or commercial applications.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: RA832A1066/U

Technical Specifications

• Amperage Rating: 7.4 A
• Voltage Rating: 120 V
• Contact Configuration: DPST
• Dimensions: 4-1/4 inches W x 5-1/4 inches H x 2-15/16 inches D
• Type: 2-Zone
• Frequency: 50/60 Hz
