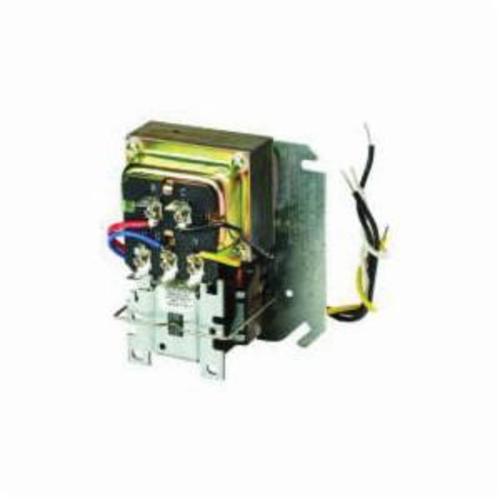

Honeywell R8285B1038/U Fan Center, DPDT, (Size/Quantity) Replacement MPN

Product Description

The Honeywell Fan Center, MPN R8285B1038/U, controls line voltage fan motors and auxiliary circuits in heating, cooling, or air conditioning systems. This unit is designed for total comfort applications with electronic air cleaners, humidifiers, and blower motors. It features a low voltage terminal board for convenient connections to thermostats and other equipment.

• Low voltage terminal board for easy connections
• Mounts on a standard four by four inch junction box
• Relay can be replaced without disturbing existing wiring

Product Highlights

This fan center supports efficient operation of HVAC systems while simplifying installation and maintenance.

Product Information

Standard Information

• Manufacturer: Honeywell
• Series: R8285B

Technical Specifications

• Application: For total comfort applications with electronic air cleaner, humidifier, and blower motors
• Dimensions: Four and one half inches wide x two and thirteen sixteenths inches deep x four and three sixteenths inches high
• Domestic/Import: Import
• Includes: R8222D general purpose relay
• Manufacturer Part Number: R8285B1038/U
• Standards/Approvals: CSA File No. LR95329-17, UL File No. E4436 Vol 15-Sec 1, Guide XAPX2
• Switch Action: DPDT
