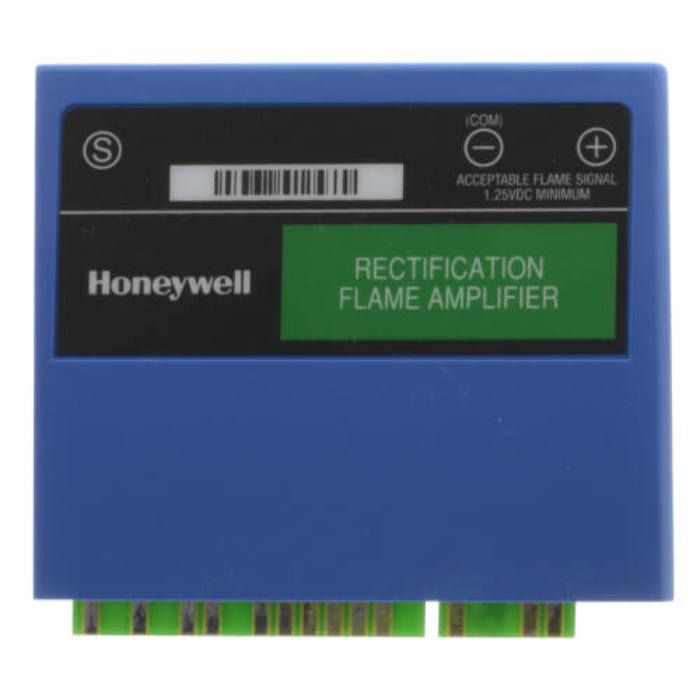

Honeywell R7847A1025/U Flame Signal Amplifier

Product Description

The Honeywell R7847A1025/U is a flame signal amplifier that provides reliable operation in burner combustion control systems. It is designed to work with various flame sensors and primary safety controls. This amplifier ensures a prompt flame response time, contributing to effective safety measures in heating applications.

• Response time of either 0.8 or 1.0 seconds.
• Compatible with gas rectifying flame rods.
• Measured flame signal strength from 0.0 to 5.0 VDC.

Product Highlights

This amplifier aids in proper flame detection and safety control operations.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: R7847A1025/U

Technical Specifications

• Flame Failure Response Time: 0.8 or 1.0 seconds
• Flame Signal Strength: 0.0 to 5.0 VDC
• Compatibility: Works with flame sensors C7004, C7005, C7007, C7008, C7009, and Q179
• Connection: Plug into 7800 relay module
• Test Jacks: Measure amplifier flame signal voltage
• Color Coding: Labels for flame detection type
