Honeywell Q7800B1003/U Wiring Subbase

Product Description

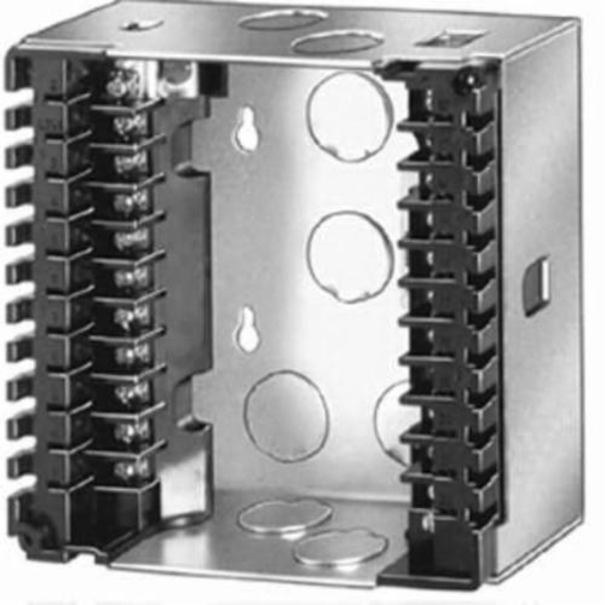

The Honeywell Q7800B1003/U is a wiring subbase designed for use with the Honeywell 7800 Series relay modules and S7830A expanded annunciator. This subbase facilitates burner and wall mounting with two knockouts on each end. It enables streamlined electrical connections while providing robust support for field wiring.

• Makes electrical connections for 7800 Series relay modules.
• Includes terminals for field wiring.
• Twenty-two terminals support multiple connections.

Product Highlights

This subbase is ideal for improving the efficiency of burner control systems.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: Q7800B1003/U

Technical Specifications

• Type: Wiring subbase
• Features: Bifurcated contacts for enhanced connectivity
• Compatibility: For use with 7800 series relay modules
• Knockouts: 2 on each end
• Terminals: 22 for field wiring support
