Honeywell Q5020A1003/U Valve Linkage

Product Description

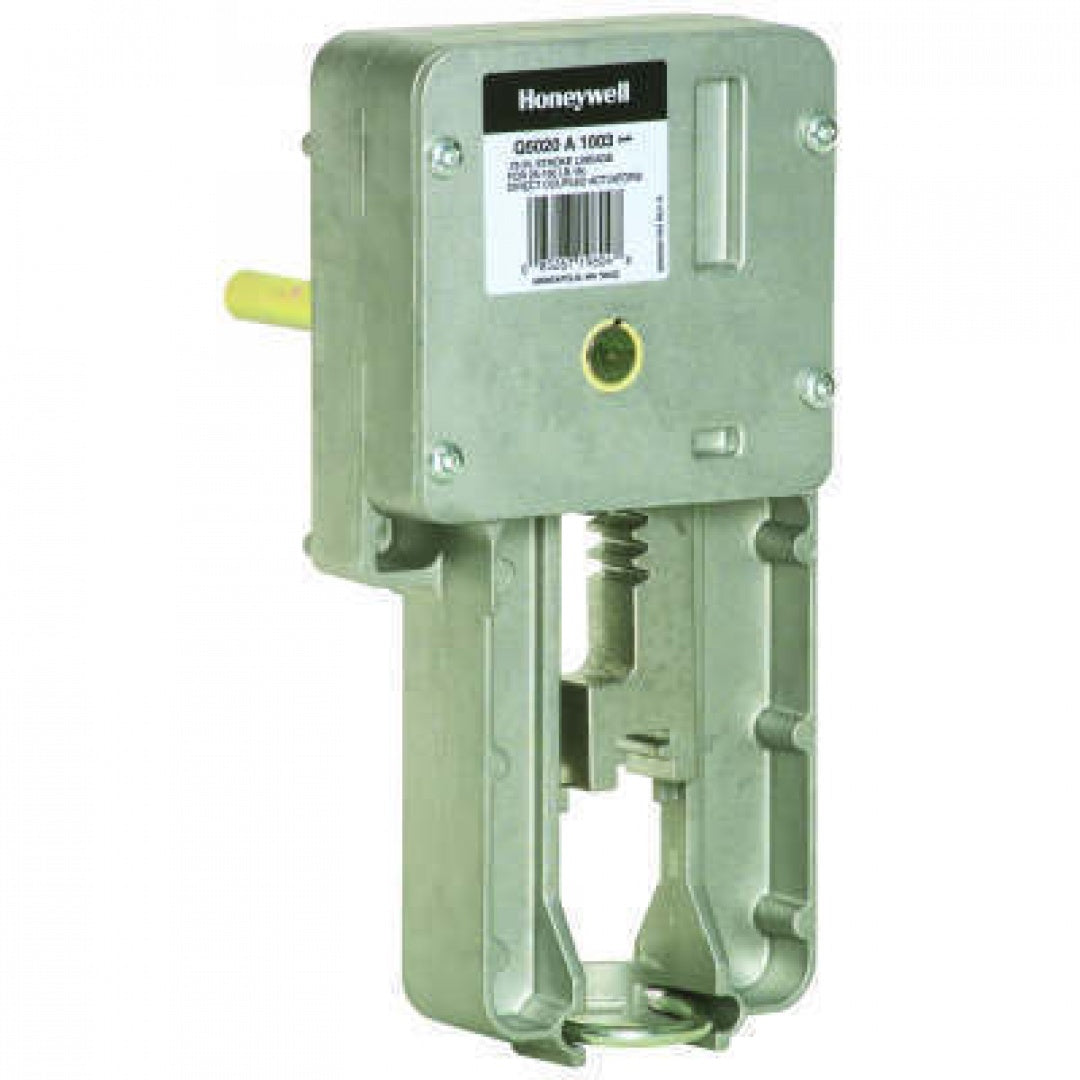

The Honeywell Q5020A1003/U valve linkage is designed to connect a Honeywell direct coupled actuator to steam or water globe valves. This product is suitable for two-way and three-way globe valves up to three inches in diameter. The installation process is quick and requires no disassembly of existing parts.

• Compatible with various valve types.
• Maintenance-free design.
• Flexible installation options.

Product Highlights

This valve linkage features a heavy-duty steel construction and an aluminum die-cast housing. It allows for a precision connection with roller-bearing rack construction, reducing the chance of wear and leakage over time. The adjustable manual override lever offers additional control over valve positioning.

Product Information

Standard Information

• Product Type: Valve Linkage
• Country Of Origin: United States

Technical Specifications

• Drive Shaft Diameter: 1/2 inch
• Mounting Type: Directly mounts to valve bonnet
• Bonnet Size: 1 3/8 inches
• Stroke: 3/4 inch
• Actuator Compatibility: Direct Coupled Actuator
• Linkage Type: Valve
