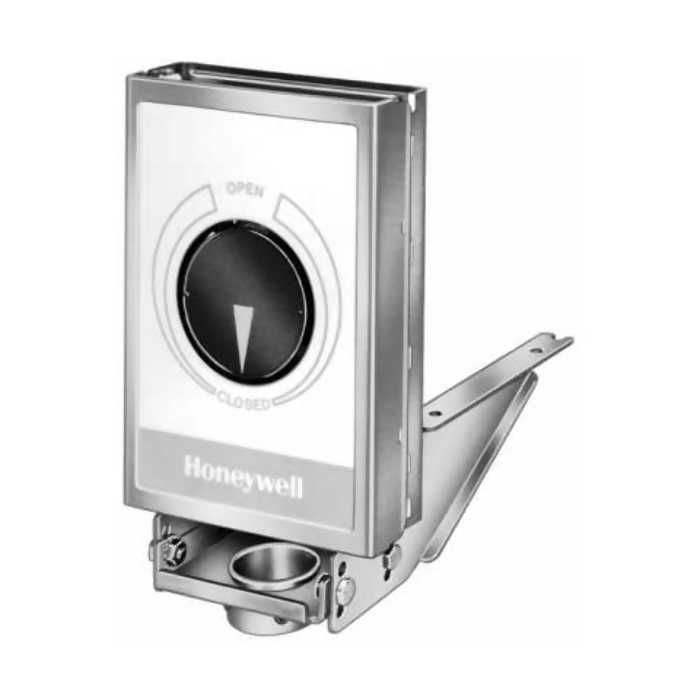

Honeywell Q5001D1026/U Valve Linkage

Product Description

The Honeywell Q5001D1026/U is a valve linkage designed to connect a Modutrol motor to a two or three-way valve. It is primarily used with V5011 or V5013 steam and water valves. This linkage is compatible with Modutrol IV motors that operate with a stem force of 160 or 320 pounds, suitable for valves up to four, five, or six inches in size.

• Connects Modutrol motors to valves
• Compatible with Honeywell V5011 and V5013 valves
• Requires no adjustment when used with Modutrol IV motors

Product Highlights

This product simplifies installation and enhances efficiency in HVAC systems, making it ideal for both new installations and replacements.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: Q5001D1026/U
• Min Order Quantity: 1
• Availability: Out of Stock

Technical Specifications

• Applicable Valves: 2-way or 3-way
• Service Type: Modulating or two-position
• Linkage Adjustment: No adjustment needed for Honeywell valves
• Replaces: Q601 and Q618 linkages
• Mounting: Directly to valve bonnet
• Position Indicator: Easy-to-read
• Valve Stem Lift Height: Cam selectable
• Over Travel Feature: Permits tight close-off without excessive motor strain
