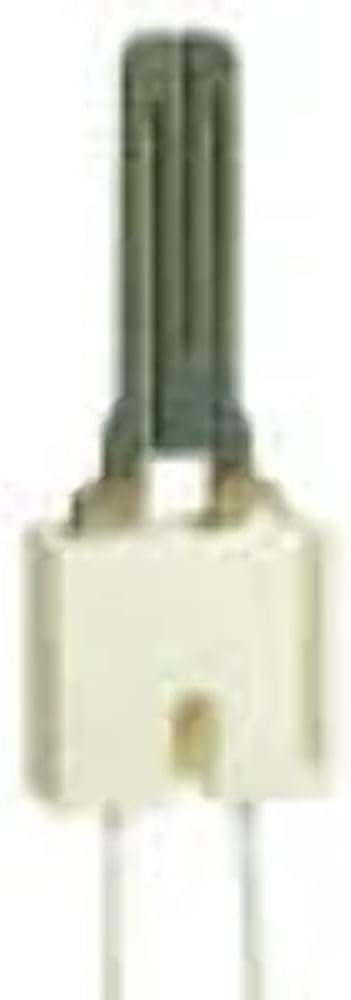

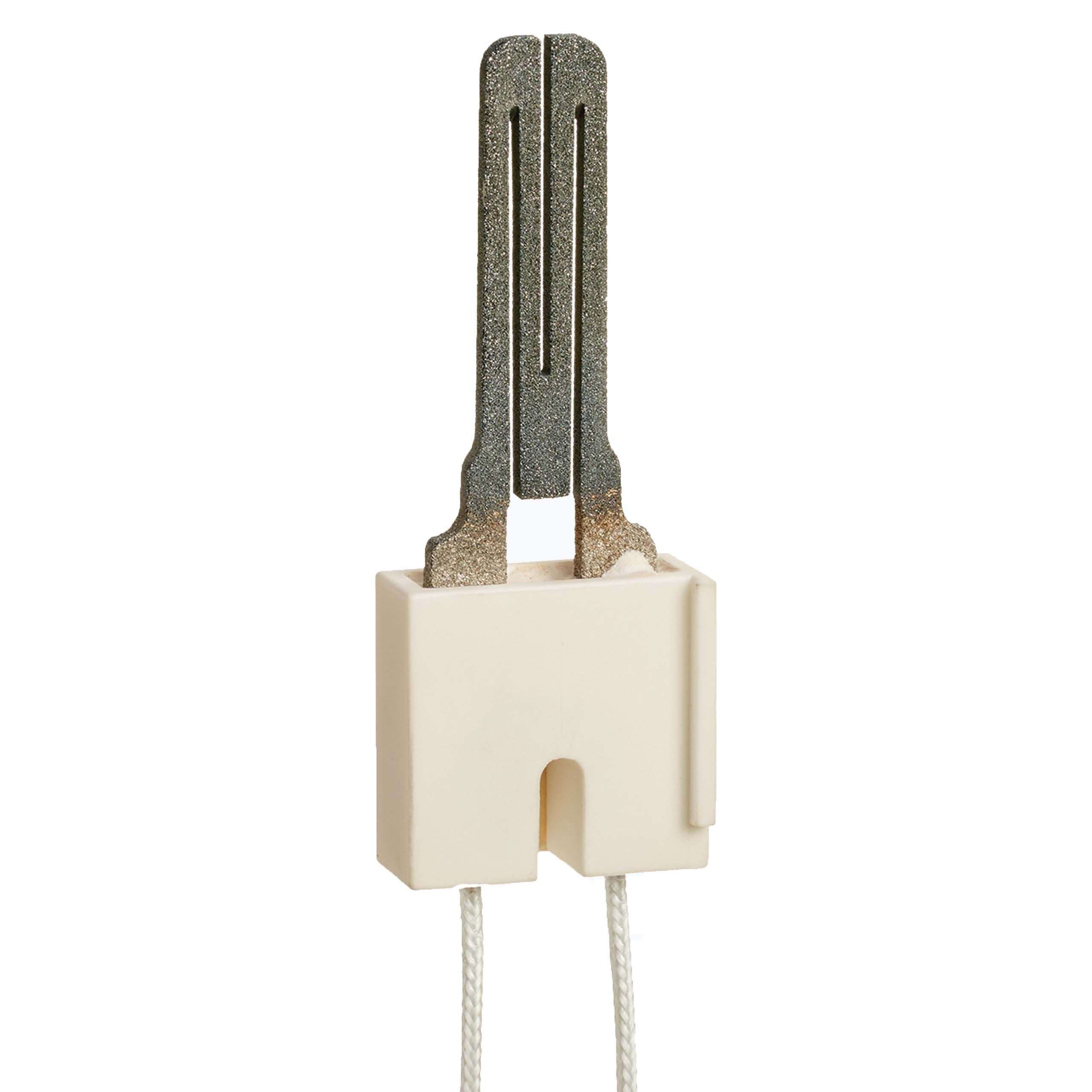

Honeywell Q4100C9054/U Silicone Carbide Hot Surface Ignitor 120 VAC

Product Description

The HONEYWELL Q4100C9054/U Silicone Carbide Hot Surface Ignitor is designed as a robust field service replacement igniter for gas-fired appliances using 120 VAC silicon carbide hot surface igniters. It uses a 120 Volt silicon carbide igniter design with long life and high resistance to damage. Includes bracket, screw, and wiring accessories to adapt to the specific appliance application.

• Designed to provide a robust field service replacement igniter.
• Uses a 120 Volt silicon carbide igniter design with long life.
• Replaces popular versions of Robertshaw, White-Rodgers, and Norton silicon carbide igniters.

Product Highlights

This igniter provides reliable ignition for gas-fired appliances and is compatible with both natural gas and LP appliances.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: Q4100C9054/U
• Country of Origin: US

Technical Specifications

• Voltage: 120 VAC
• Gas Type: LP Natural Gas
• Mounting: Standard Mounting With Rib Offset From Left Edge
• Leads: 5-1/4 in.
• Application: 120 V Replacement Igniter
• Compatible With: Gas-fired Systems
• Includes: Bracket, Screw, Wiring Accessories
• Warranty: 2 years
• Igniter Material: Silicon Carbide
• Lead Wire Length: 5.25 in
• Product Length: 5.25 in, 133 mm
• Temperature Ratings (C): 200 C
• Temperature Ratings (F): 392 F
• Connection Type: Molex side lock connector with .092 male pins
