Honeywell Q340A1066/U Universal Thermocouple, 30Mv Output, 18 inches Length

Product Description

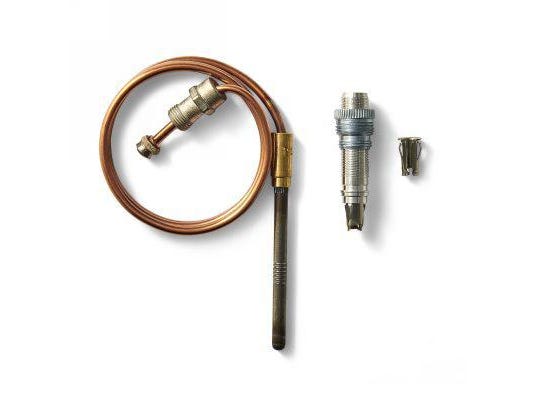

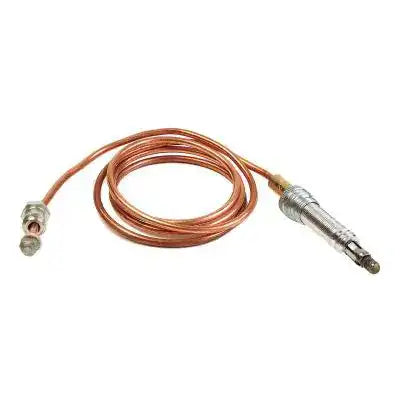

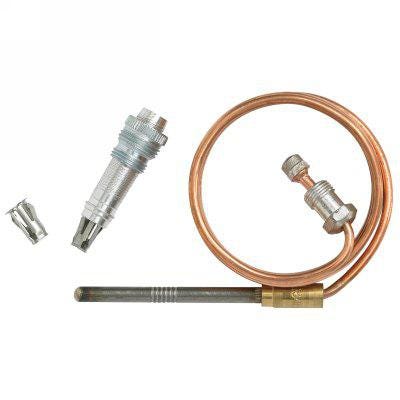

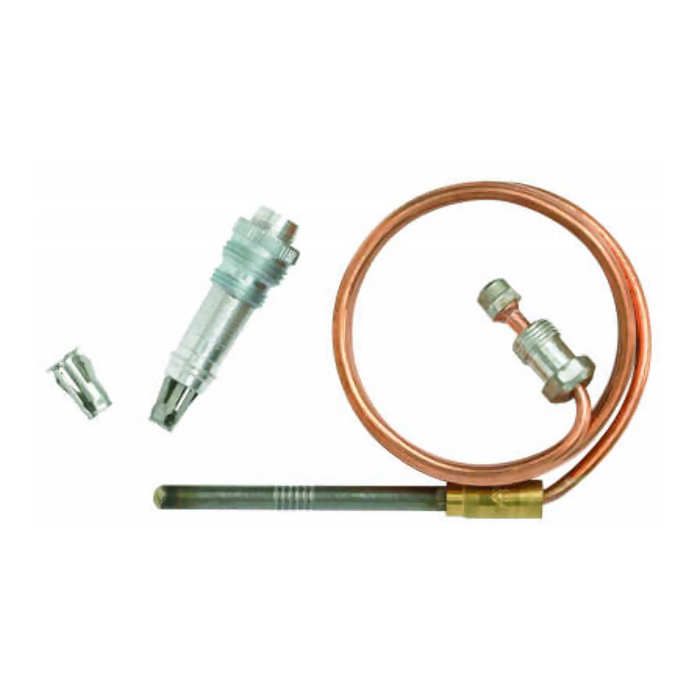

The Honeywell Q340A1066/U is a universal thermocouple with 30Mv output and 18" length. It senses the pilot flame on standing pilot gas-fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential to generate 30 millivolts. It includes an adapter and push-in clip.

• Universal Thermocouple
• 30Mv Output
• 18" Length

Product Highlights

The Honeywell Q340A1066/U thermocouple is designed for use in standing pilot gas systems. It generates a 30 millivolt signal in response to sustained pilot flame presence.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: Q340A1066/U
• Country of Origin: United States

Technical Specifications

• Style: Modern
• Specific Uses For Product: Temperature
• Product Type: Electronic Component
• Brand: Honeywell
• MPN: Q340A1066/U
• Item Model Number: Q340A1066/U
• Connection Size: 11/32-32
• ConnectionType: Male
• Gas Type: Liquid Propane Gas, Natural Gas
• Lead Length: 18 in
• Open Circuit Output: 26 to 32 mV
• Resistance: 0.02 Ohm
• Temperature Rating: 780 deg F Cold, 1400 deg F Hot
• Voltage Rating: 30 mV
• Application: Thermocouple for Standing Pilot Applications
• Includes: Adapter and Push In Clip
• Item Type: Thermocouples
• Sub Type: Thermocouple
• Approval: CSA
• Junction Type: Hot, Cold
• Model: Q340
• Temperature Measuring Range: 1400 Deg F (Hot), 780 Deg F (Cold)
• Type: Universal
