Honeywell Q314A4586/U Standing Pilot Burner (Bracket B) Q314A4586/U

Product Description

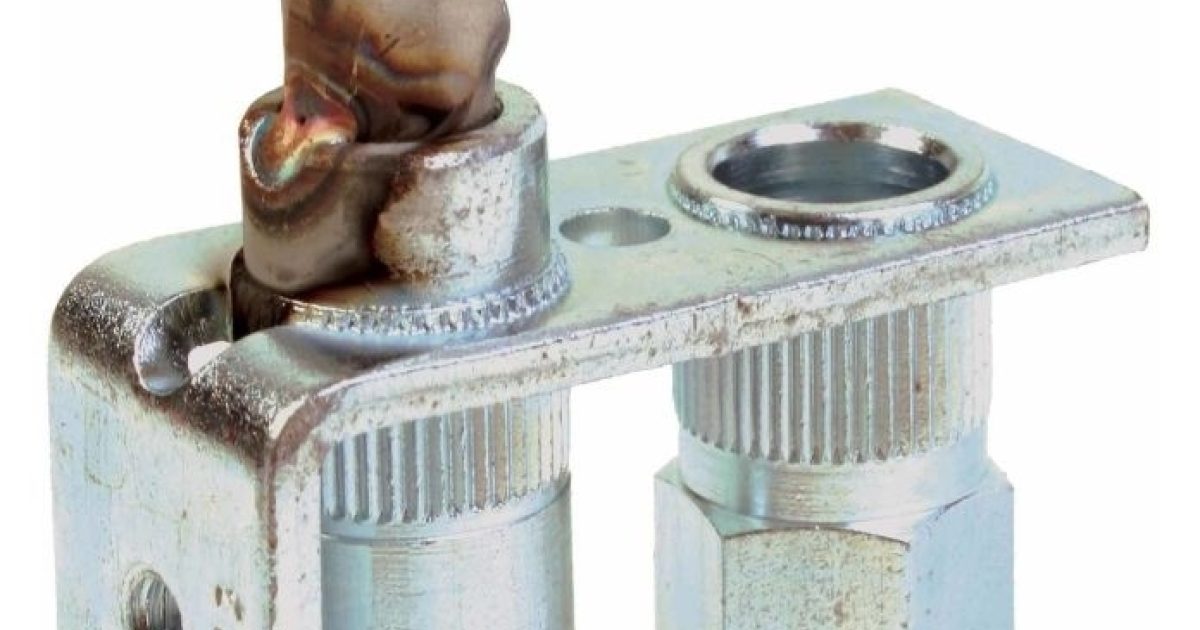

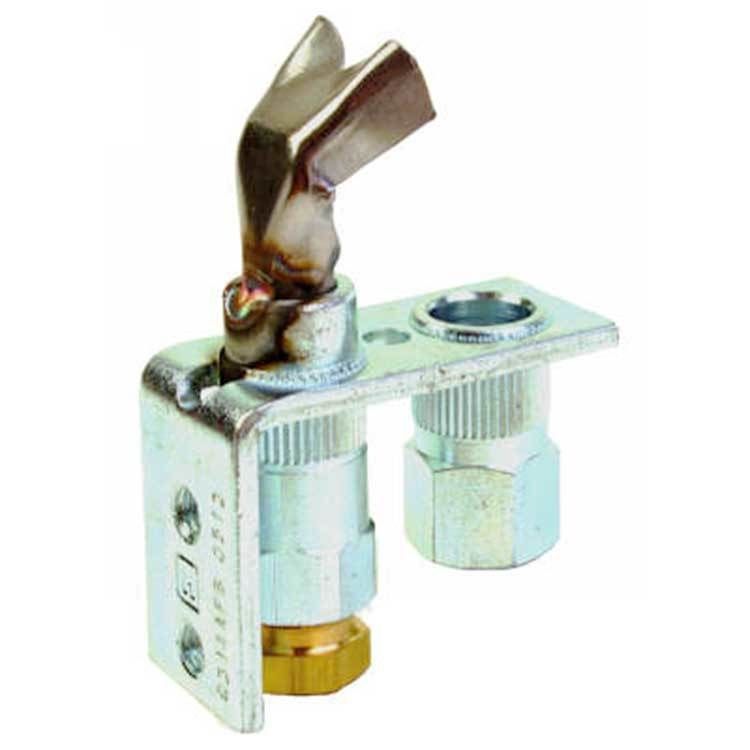

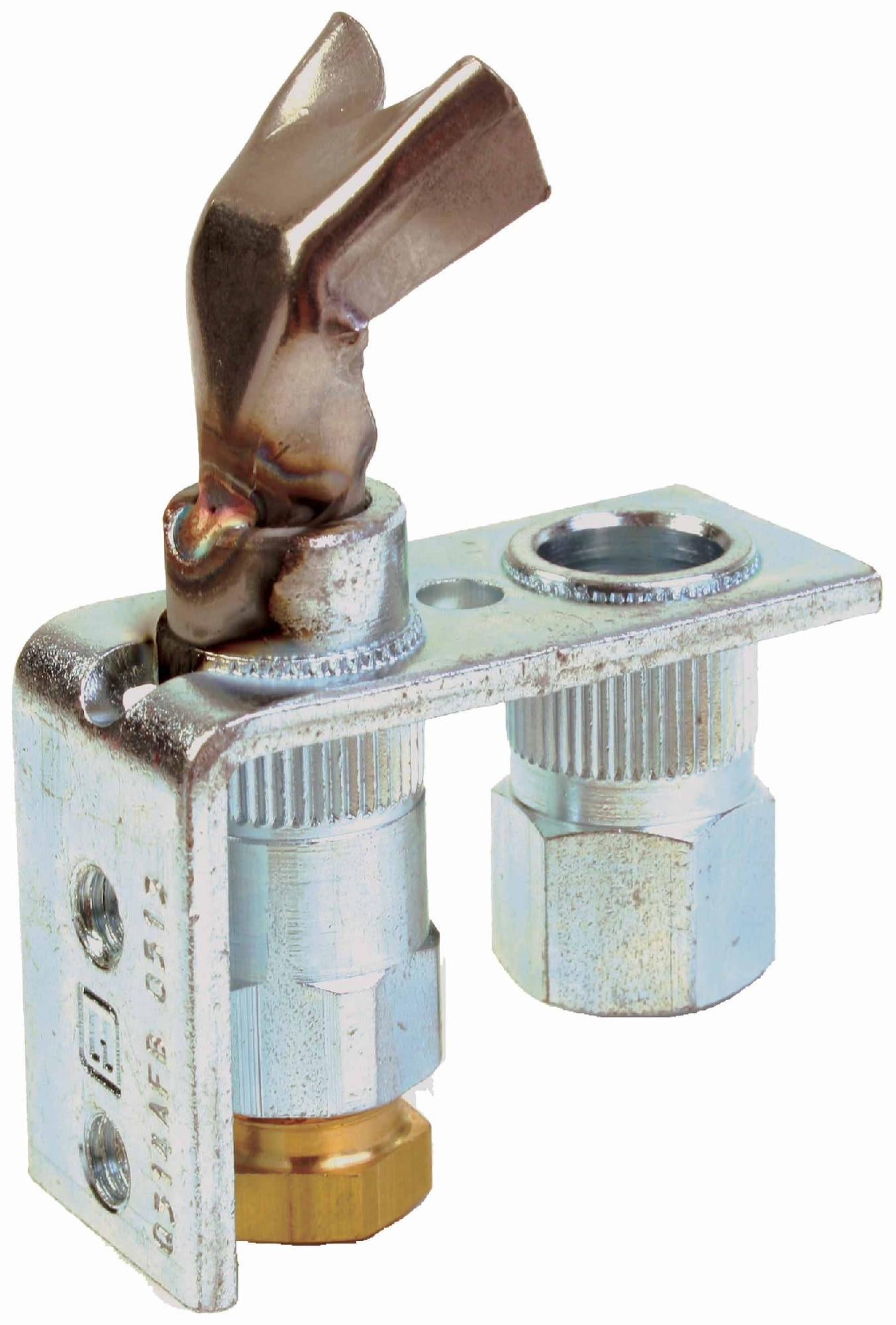

Honeywell Q314A4586/U is a standing pilot burner for LP and natural gas applications. It is a non-primary aerated, insert-orifice single-tip (front) pilot designed for main burner ignition and supplied with a B-style mounting bracket that includes screws to convert to an A bracket. The unit features interchangeable, color-coded orifice and inlet fittings, a 0.65 in compression fitting length and a 1/4 in compression connection, and is compatible with Q309, Q340, Q390 thermocouples and Q313 thermopiles.

• Non-primary aerated, insert-orifice pilot; single-tip target style with front direction
• Includes B-style mounting bracket with screws to convert B bracket to A bracket; interchangeable color-coded orifices and inlet fittings for LP/Natural conversion
• 0.65 in compression fitting length; 1/4 in compression connection; compatible with Q309, Q340, Q390 thermocouples and Q313 thermopiles

Product Highlights

Standing pilot burner for natural and LP gas; single front tip; convertible mounting bracket and interchangeable orifices; 1/4 in compression connection; compatible with Honeywell thermocouples/thermopiles.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: Q314A4586/U
• Country of Origin: Import

Technical Specifications

• Brand: Honeywell
• Manufacturer Part Number: Q314A4586/U
• Product Type: Standing pilot burner
• Pilot Type: Non-primary aerated, insert-orifice
• Tip Style: Single-tip (target tip)
• Tip Direction: Front
• Fuel Type: Natural gas; LP (convertible via interchangeable orifices/inlet fittings)
• Connection Type: 1/4 in compression
• Compression Fitting Length: 0.65 in
• Mounting Bracket: B style (includes screws to convert B to A)
• Included Orifices: BCR-18 (0.018 in) and BBR-10 (0.010 in) (included/packed according to sources)
• Interchangeable Orifice/Inlet Fittings: Color-coded fittings to convert between natural and LP gas
• Compatible With: Q309, Q340, Q390 thermocouples; Q313 thermopiles
• Applications: Standing pilot ignition; main burner ignition
• Standards/Certifications: CSA International 112395
• Dimensions: 3.9 x 6.4 x 1.0 inches
• Weight: 0.1 lb
