Honeywell Q313B1005/U Replacement Thermopile Generator 750 mV

Product Description

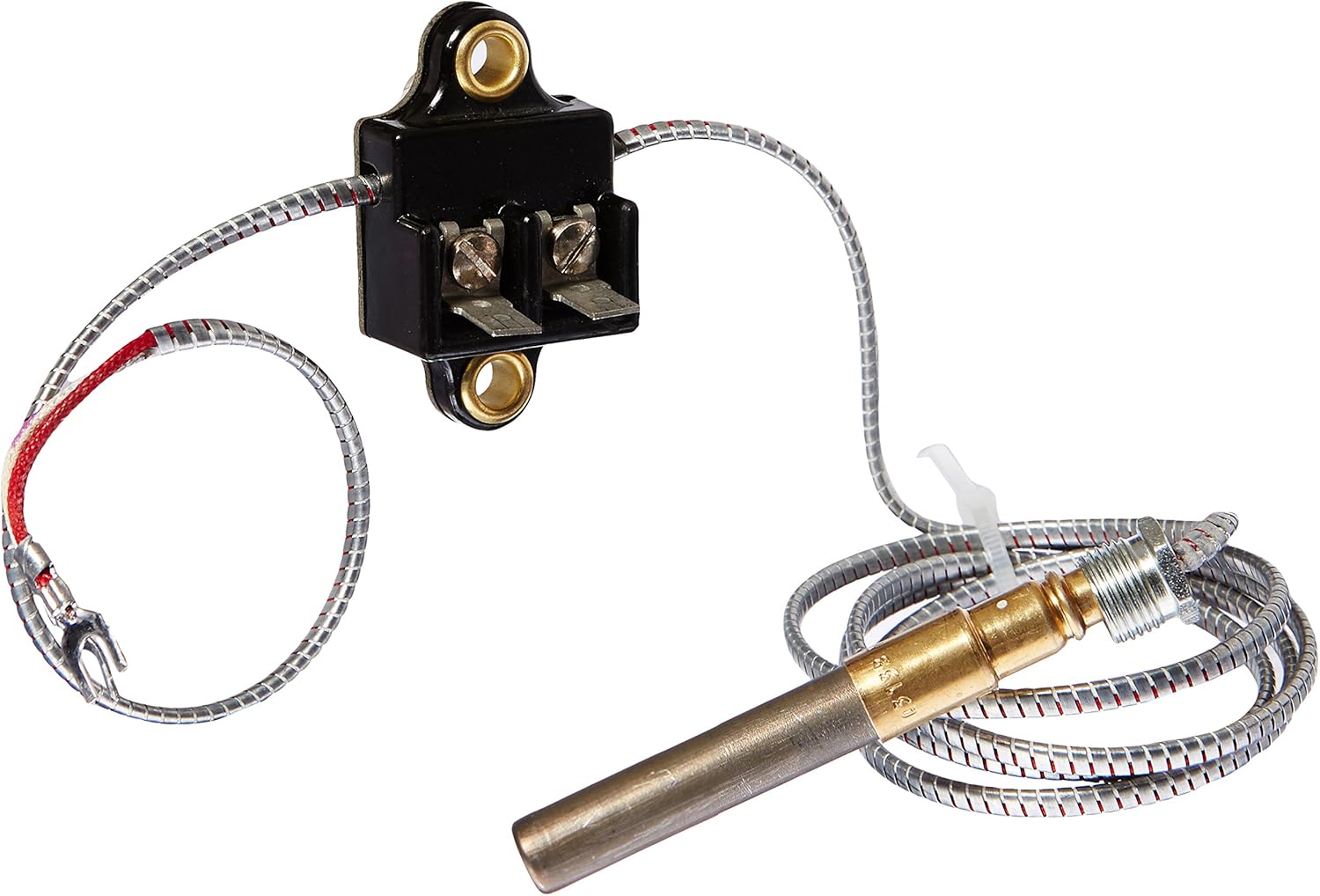

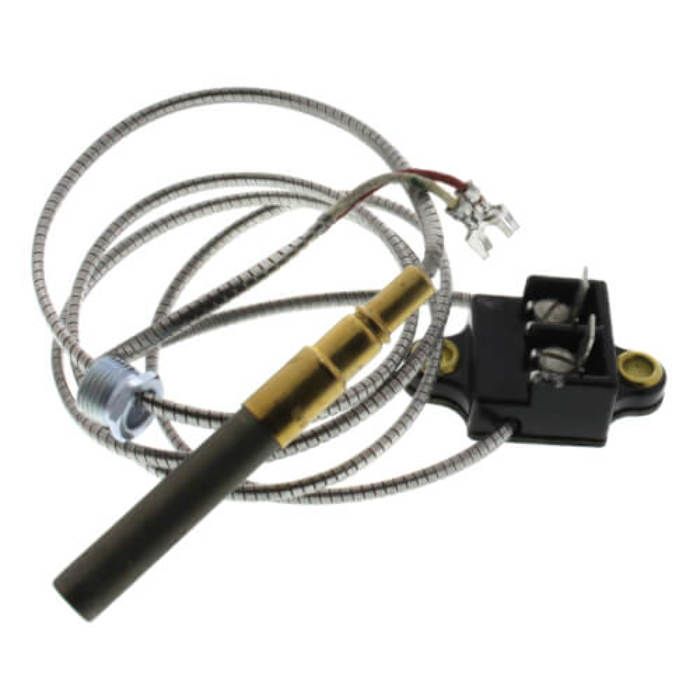

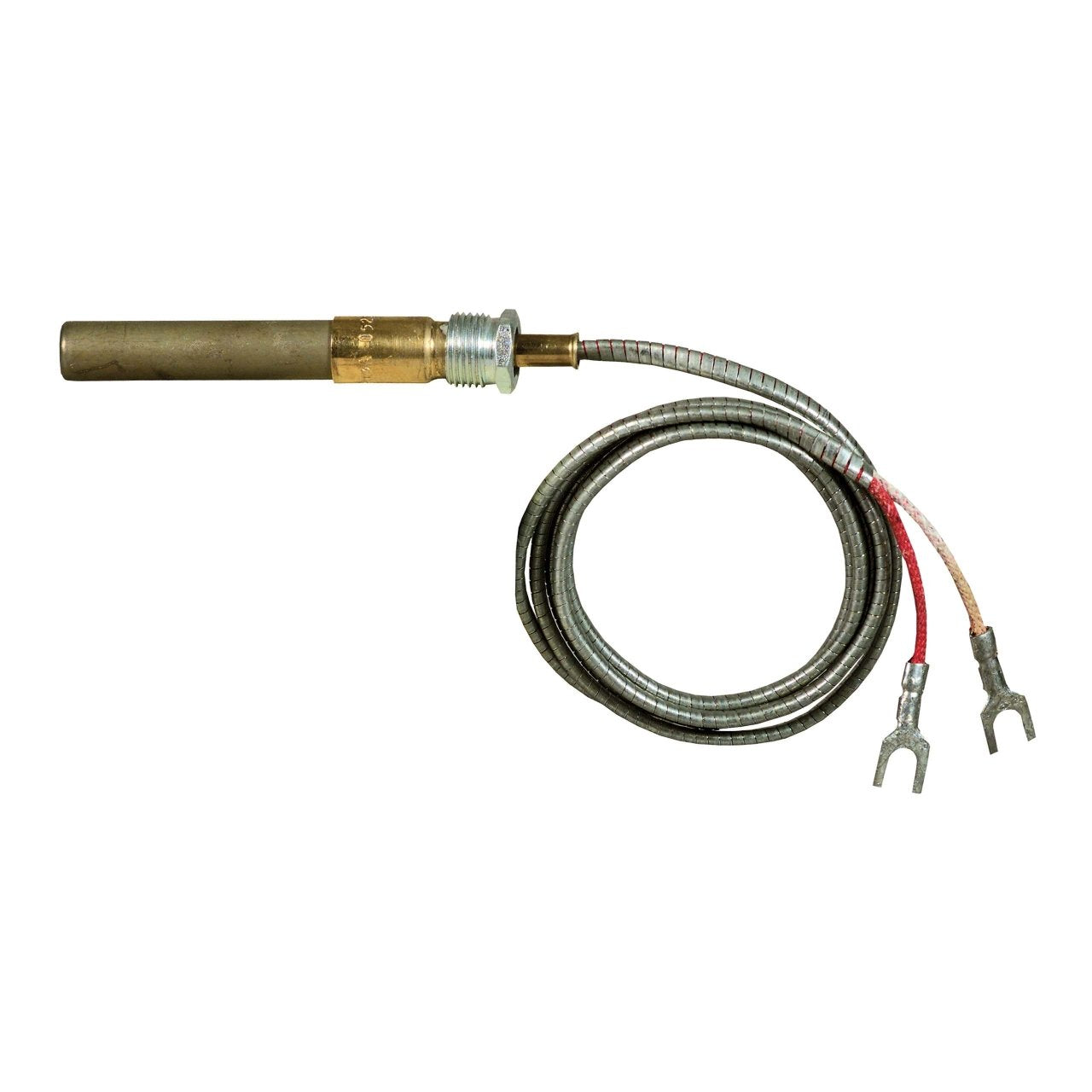

The HONEYWELL Q313B1005/U replacement thermopile generator contains multiple thermocouples connected in series to provide 750mV. The power generated is sufficient to operate an automatic millivolt gas control system, independent of any outside power source. Includes junction box for series hookup with high limit switch and 1/2 in. thermopile attaching nut.

• Push-In Clip, Split Nut, And Adapter Assembly For Easy Pilot Burner Installation
• Spade Or Quick-Connect Terminals Available For Millivolt Gas Control Connections
• Male Nut Connector For Pilotstat Safety Control Power Units

Product Highlights

The Q313B1005/U thermopile generator operates automatic millivolt gas control systems without an outside power source. It has spade terminals and 2.89 ohms resistance.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: Q313B1005/U
• Country of Origin: United States

Technical Specifications

• Resistance: 2.89 ohms
• Manufacturer: Honeywell
• Part Number: Q313B1005
• Product Dimensions: 10.16 x 10.16 x 10.16 cm
• Item model number: Q313B1005
• Power Source: AC/DC
• Voltage: 750 Volts
• Item Package Quantity: 1
• Included Components: Powerpile
• Batteries Included?: No
• Batteries Required?: No
• Item Weight: 18.1 g
• Brand: Honeywell
• MPN: Q313B1005/U
• Application: 750 mV Thermopile
• Prop 65 Warning: WARNING/CA WARNING/CALIFORNIA: Risk of cancer and reproductive harm from exposure to [Lead]. See www.P65Warnings.ca.gov
• For Use With: Q314 Pilot Burners, Q324 Pilot Burners, Q327 Pilot Burners, Q382 Pilot Burners (requires Q313 and Q335)
• Includes: Terminal Block
• Lead Wire Length: 35 in, 889 mm
• Cold Junction Temperature Rating (Max): 780 °F, 416 °C
• Hot Junction Temperature Rating (Max): 1400 °F, 760 °C
• Connection Type: Spade Terminals
• Open Circuit Output (Max): 600 mV to 750 mV
• Open Circuit Output (Min): 540 mV
• Operating Voltage: 750 mV
• Republic #: 5949
• Catalog #: Q313B1005/U
