Honeywell Q313A1188/U Thermopile 750mV 35

Product Description

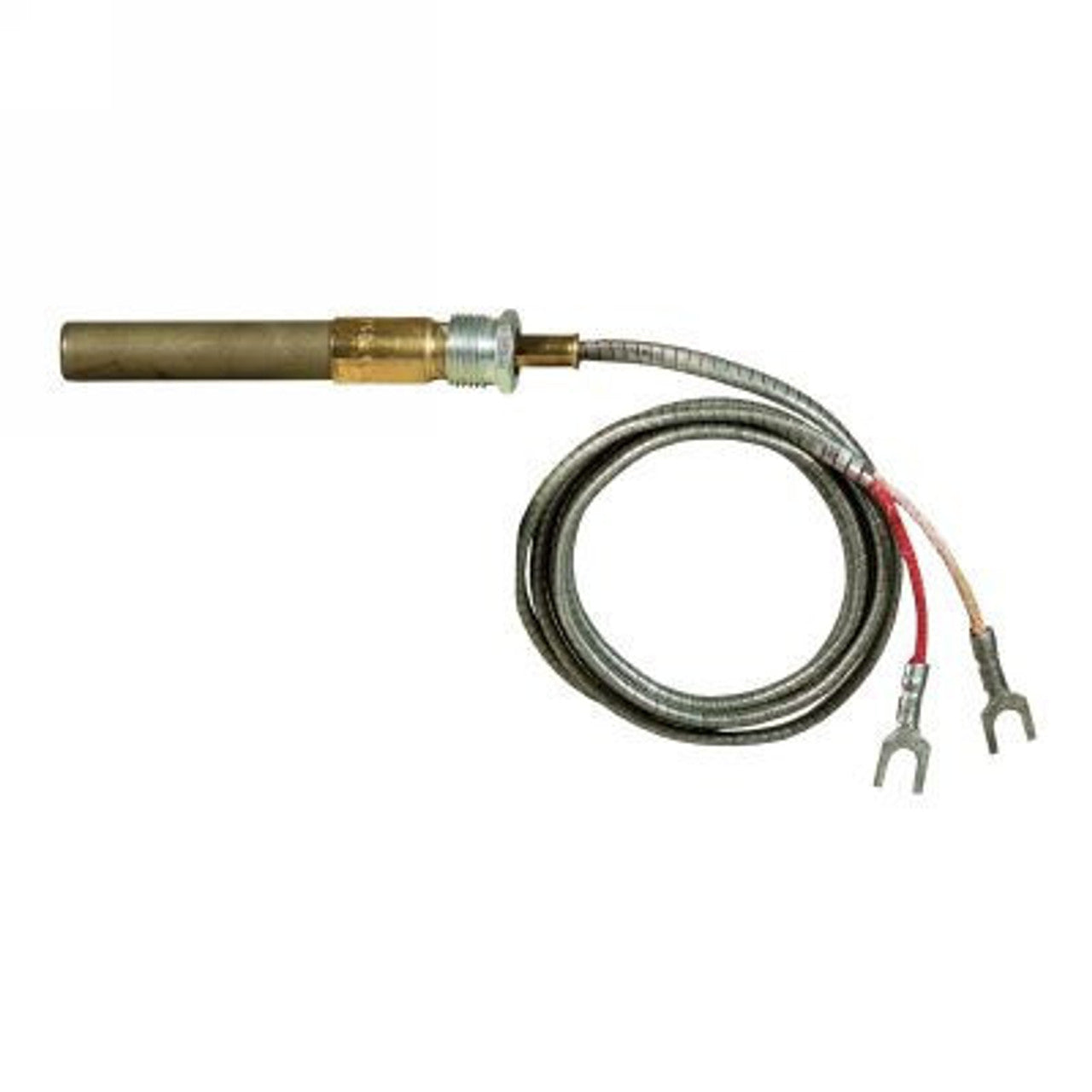

The Honeywell Q313A1188/U is a thermopile generator that consists of several thermocouples linked in series. It produces a voltage output of seven hundred fifty millivolts, which is adequate for operating an automatic millivolt gas control system without requiring an external power source. This unit features spade terminals for connections and comes with a PG9 adapter. It is designed for ease of pilot burner installation with options for a push-in clip, split nut, or adapter assembly depending on the model.

• Spade terminals for easy millivolt gas control connections.
• Includes PG9 adapter for compatibility.
• Generates a 750mV output for seamless operation of gas control systems.

Product Highlights

This thermopile is versatile and reliable for various applications in HVAC and plumbing sectors.

Product Information

Standard Information

• Brand: Honeywell
• MPN: Q313A1188/U

Technical Specifications

• Voltage: 750 mV
• Open Circuit Output: 600 mV to 750 mV
• Connection Type: Spade Terminals
• Resistance: 2.88 ohms
• Hot Junction Temperature: 1400 F
• Cold Junction Temperature: 780 F
• Universal: Yes
• Lead Length: 35 inches
