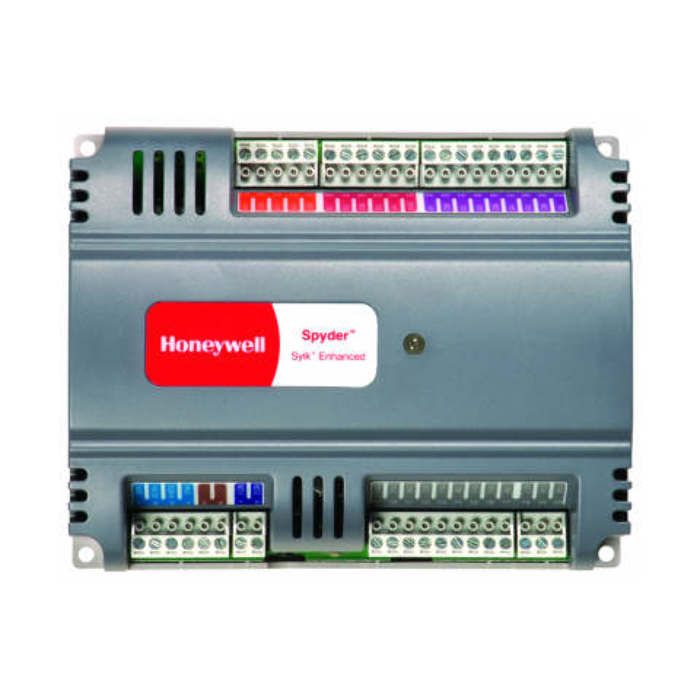

Honeywell PUB6438SR/U Spyder 21 IO

Product Description

The Honeywell PUB6438SR/U is a programmable unit controller designed for various HVAC applications. It features 21 input/output points, making it suitable for advanced building automation systems. The Spyder controller is equipped with BACnet MS/TP communication, which allows for effective data exchange across the network. This product is ideal for use in fan coils, heat pumps, and unit heaters.

• Real-time clock for scheduling
• Supports multiple controllers in a BACnet network
• Easy installation with removable terminal blocks

Product Highlights

This controller supports a wide range of HVAC applications with built-in zone control functions.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: PUB6438SR/U

Technical Specifications

• IO Points: 21
• Type: Programmable, Stand-alone
• Communication Network: BACnet MS/TP
• Power Supply: 24 VAC (20 to 30 VAC)
• Operating Temperature: -40 F to 150 F
• Approval: UL/cUL Listed with Plenum Rating
• Mounting: DIN Rail
• Applications: Fan Coils, Heat Pumps, Unit Heaters
