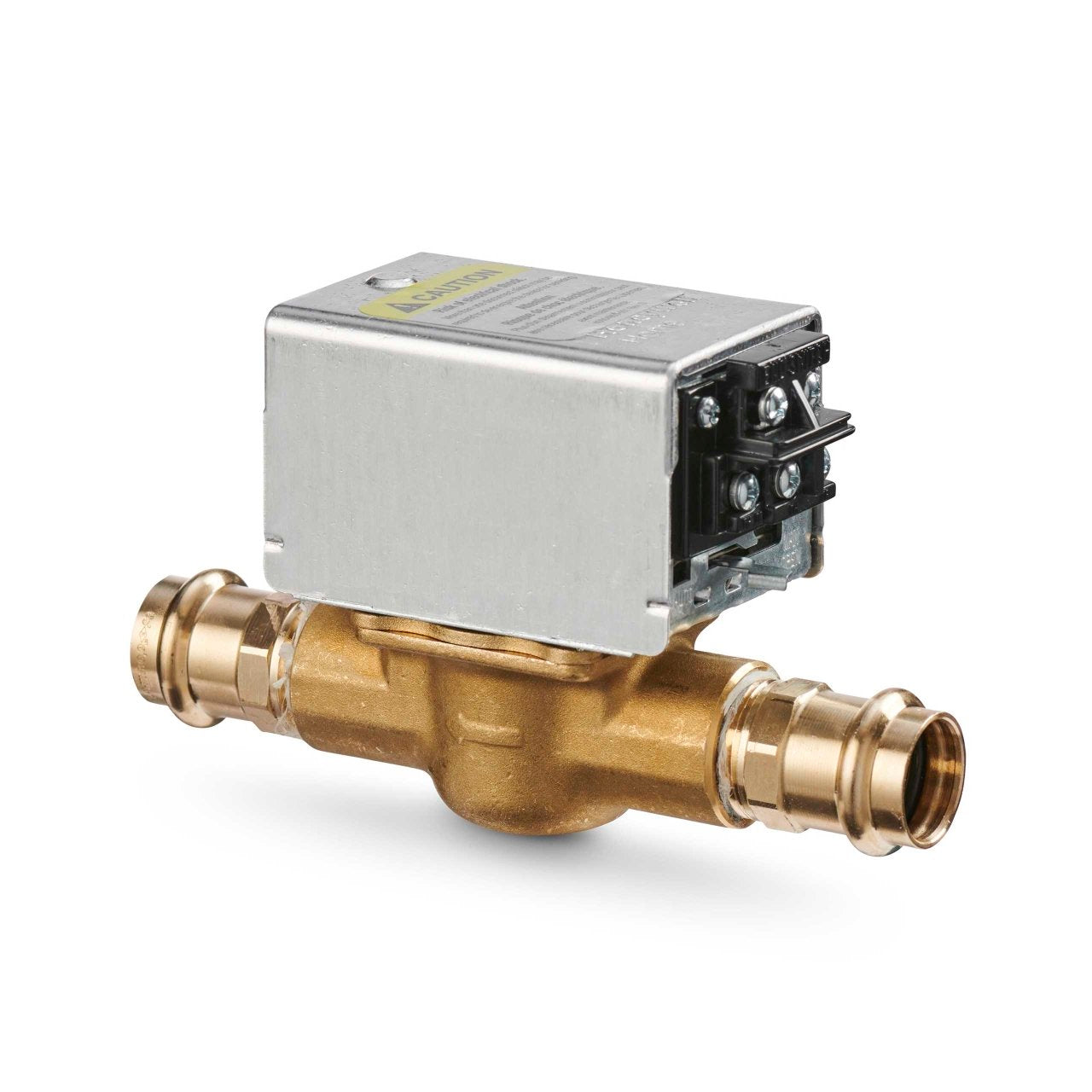

Resideo V8043F1812/U 24 Vac 3/4 in Pro Press Zone Valve 8.0 Cv V8043F1812/U

Brand: RESIDEO
SKU: V8043F1812/U
Availability: In Stock

Ships same day if ordered by 12 pm
$148.43
$148.43
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Resideo V8043F1812/U is a 24 Vac zone valve assembly with actuator designed to control hot water flow in hydronic systems. The 3/4 in Pro Press valve provides an 8.0 Cv flow capacity, screw terminal block wiring, and an integrated end switch. It features a spring-return fail-safe that closes on power loss, a manual opener for emergency operation, and a removable powerhead for service without breaking plumbing.

  • 3/4 in Pro Press two-way zone valve with 8.0 Cv capacity and 24 Vac actuator
  • Spring-return to close fail-safe, manual opener, and removable powerhead for service
  • Includes end switch enclosure and screw terminal block; rated for 40 F to 200 F fluid temperatures

Product Highlights

3/4 in Pro Press hydronic zone valve, 24 Vac, 8.0 Cv, spring-return closed, end switch included

Product Information

Standard Information

  • Brand: RESIDEO
  • Manufacturer Part Number: V8043F1812/U
Technical Specifications
Brand
Resideo
MPN
V8043F1812/U
Product Type
Zone valve (two-way, on-off)
Voltage
24 Vac
Power Consumption
7.7 VA
Current Draw
0.32 A
Frequency
50 Hz; 60 Hz
Pipe Size
3/4 in (DN20)
Connection Type
Pro Press
Electrical Connections
Screw terminal block
Flow Coefficient (Cv)
8.0 Cv
Valve Body Material
Brass
Valve Seat Material
Brass
Valve Stem Material
Stainless Steel
Valve Plug Material
Buna-N (NBR) Rubber
Packing Material
EPDM rubber
Valve Action / Fail-safe
Spring return to close; normally closed (de-energized)
Power Loss Action
Valve closed
Actuation
Two position
Manual Opener
Yes
Includes
End switch enclosure; terminal block connections
End Switch Rating
50 VA pilot duty @ 24 V; 4.4 A running with 26.4 A inrush @ 120 V
Nominal Open Time
15 sec
Fluid Temperature Range
40 F to 200 F (4 C to 93 C)
Ambient Operating Temperature (Max)
125 F (52 C)
Operating Humidity Range
5 to 95% relative humidity, non-condensing
Static Pressure Rating
120 psi (827 kPa)
Differential Pressure for Close-off (Max)
20 psi (138 kPa)
Certifications
UL Listed: File MH11826; CSA Certified: File 1322
