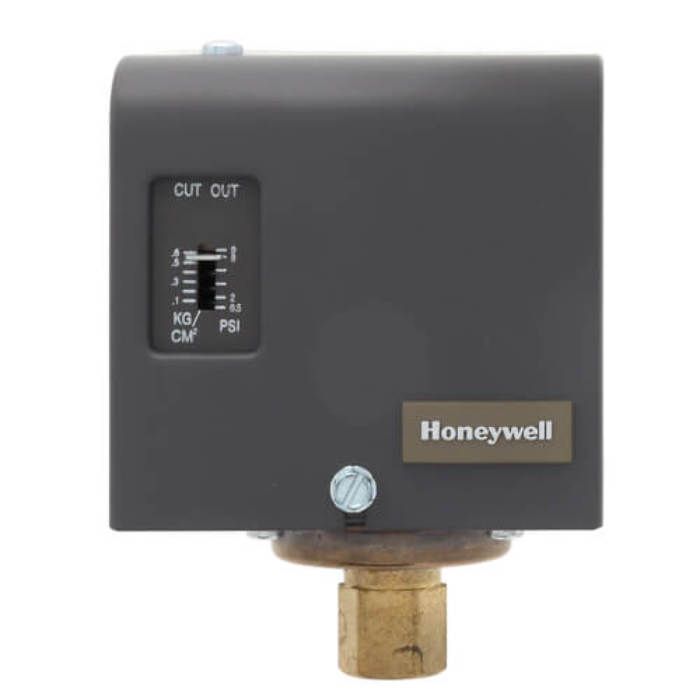

Honeywell PA404A1025/U Pressuretrol Controller Power

Product Description

The Honeywell PA404A1025/U is a Pressuretrol Controller. This device is designed for use in steam heating boilers. It utilizes a pressure-actuated mechanism to monitor and control steam pressure levels.

• Two-Wire, SPST, Subtractive Differential Type
• Operating Range of 3.0 to 15 psi
• Adjustable Differential from 1 to 5 psi

Product Highlights

This controller offers reliable performance, with a safety feature that shuts down the burner if steam pressure exceeds safe levels.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: PA404A1025/U

Technical Specifications

• Connection: 1/4 in. Female Pipe Threads
• Voltage Compatibility: 24, 120, 240, or 277 Volt Control Circuits
• Self Powered Applications: Millivoltage
• Switch Type: SPST Micro Switch
• Adjustment Feature: Set Point Adjustable Without Cover Removal
• Differential Adjustment: Dial Located Inside the Case
