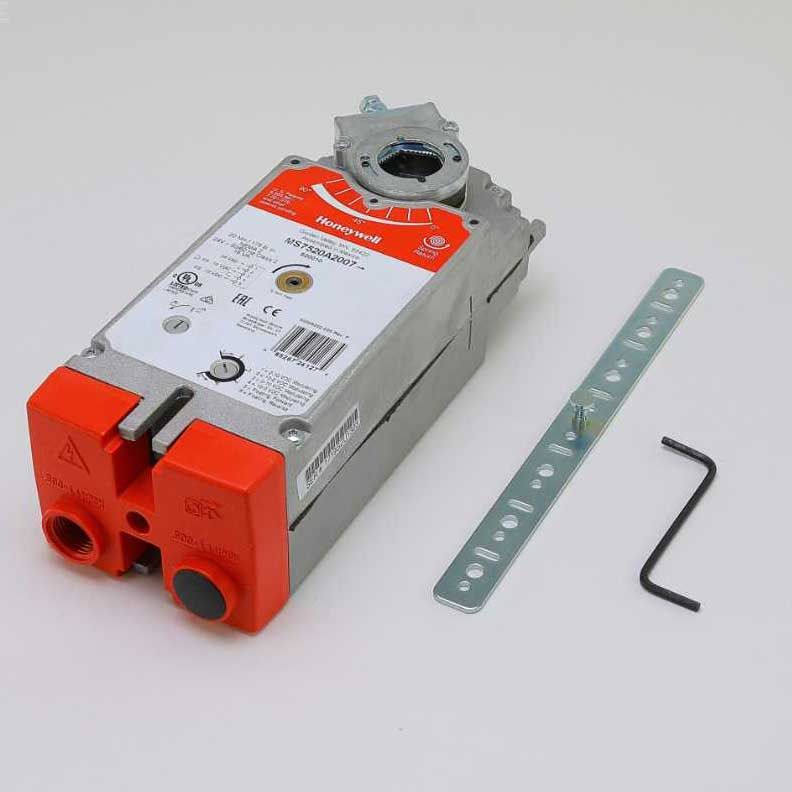

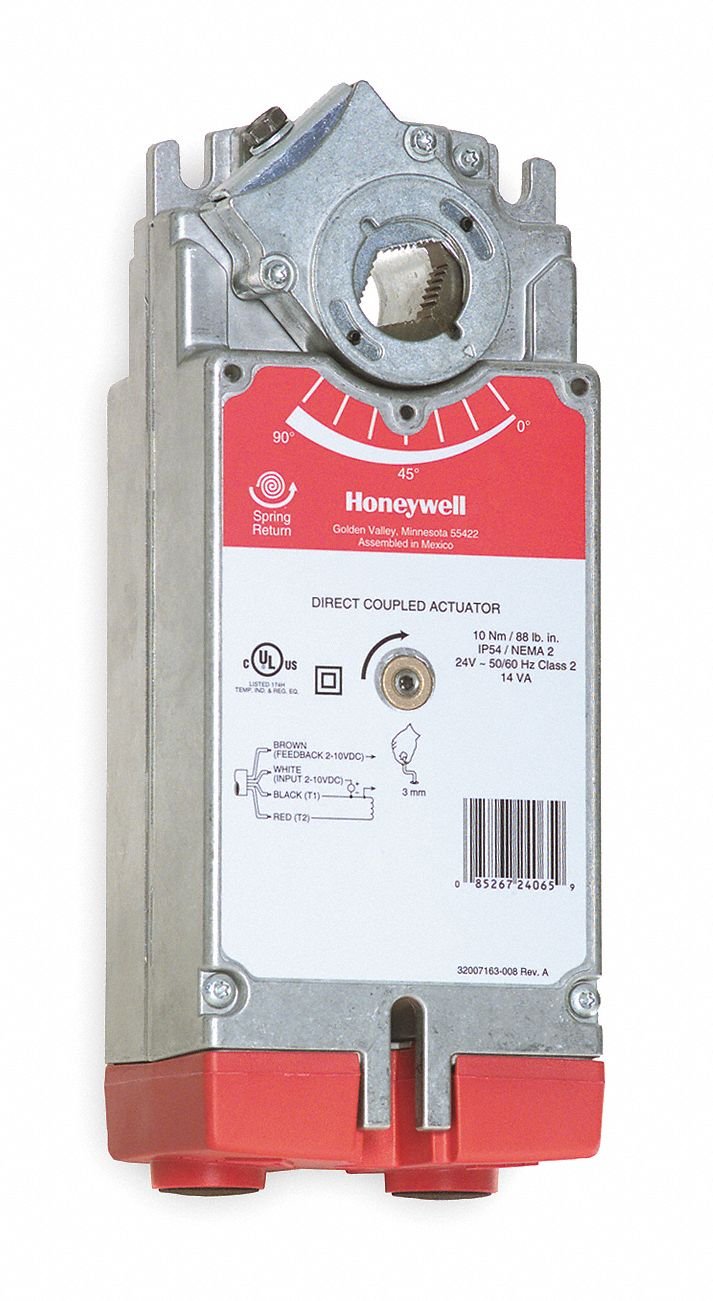

Honeywell MS7520A2007 Electric Actuator 24V Spring Return HVAC Control

Product Description

The Honeywell MS7520A2007 is a robust electric actuator designed for HVAC systems, supporting a range of control requirements including floating and proportioning applications. This model ensures reliable performance, even in power loss situations, where it defaults to a failsafe position.

• Offers spring return functionality ensuring reliable failsafe operation.
• Supports floating and proportioning control signals from two to ten volts DC.
• Constructed with an enclosed screw terminal strip for secure electrical connections.

Product Highlights

This actuator is ideal for regulating air flow and damper control within HVAC settings, offering an operating temperature range from -40 to 140 degrees Fahrenheit. With a torque capacity of 175 inch-pounds and a rotation angle up to 95 degrees, it efficiently meets industrial standards.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS7520A2007

Technical Specifications

• Power Rating: 16 Volt Amp driving, 5 Volt Amp holding
• Operational Temperature Range: -40 to 140 degrees Fahrenheit
• Shaft Diameter Compatibility: 3/8 inch to 1.06 inch
• Electrical Connections: Enclosed screw terminal strip
• Body Material: Aluminum
• Control Signal Range: 2 to 10 Volt DC
• Rotation: 95 degrees
• Torque: 175 Inch-Pound
