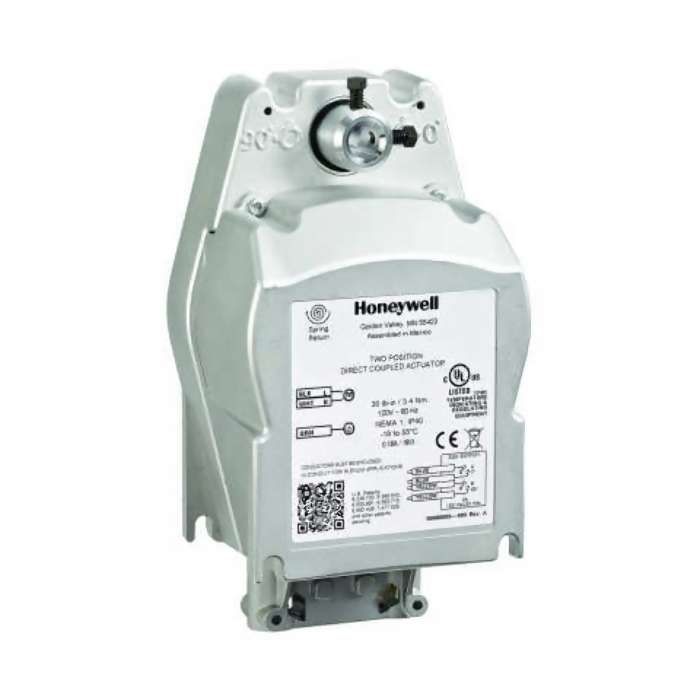

Honeywell MS4104F1210/U Direct Coupled 30 in-lb Spring Return

Product Description

The Honeywell MS4104F1210/U is a direct coupled actuator designed for use in HVAC applications. This actuator operates on 120 VAC and has a torque rating of thirty inch-pounds. It is specifically engineered for fire and smoke dampers, ensuring reliable performance in critical systems.

• Reversible mounting for clockwise or counterclockwise operation
• Designed for smoke control systems with UL555S ratings
• Fifteen-second spring return timing

Product Highlights

This actuator features an integral spring return that guarantees a reliable return torque level. It is built with an aluminum housing that allows for flush mounting to dampers. The product is ideal for applications requiring quick response times and efficient operation.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MS4104F1210/U

Technical Specifications

• Application: Fire and smoke control
• Torque Rating: 30 in-lb
• Voltage Rating: 120 VAC
• Power Consumption: 21.6 VA
• Operating Conditions: 0 F to 130 F (-18 C to 55 C)
• Dimensions: 5.13 in W x 3.32 in D x 8.9 in H
• Material: Aluminum
• Electrical Connection: Color-coded leads
