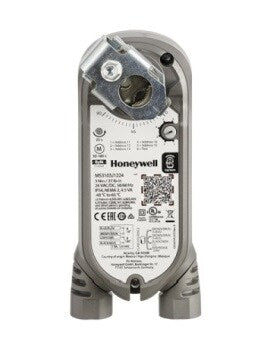

Honeywell MS3103J1223 Damper Actuator Spring Return 27 in-lb

Product Description

The Honeywell MS3103J1223 is a direct-coupled damper actuator designed for spring return applications. This actuator enables precise damper control through modulating or Sylk BUS communication. The device operates on twenty-four VAC/VDC power, providing a robust torque of twenty-seven in-lb. The actuator includes a three-foot cable for easy wiring and incorporates overload protection for added safety. It can be directly mounted onto round or square shafts.

• Delivers twenty-seven in-lb of torque for effective damper control.
• Compatible with twenty-four VAC/VDC power supply.
• Uses Sylk Bus communication for operation.

Product Highlights

This actuator offers reliable performance for HVAC systems.

Product Information

Standard Information

• Manufacturer Part Number: MS3103J1223
• Brand: Honeywell

Technical Specifications

• Product Category: Rotary Actuators
• Torque: twenty-seven in-lb
• Input Voltage: twenty-four VAC ± twenty percent at fifty or sixty Hertz, twenty-four VDC ± twenty percent/-ten percent
• Power Consumption: four point five VA
• Control Signal: Communicating
• Voltage Output: two to ten VDC, zero to ten VDC, ten to zero VDC
• Input Impedance: ninety-five kOhm minimum
• Wiring: three-foot cable, eighteen AWG
• Rotation: ninety-five degrees ± three degrees
• Operating Temperature: minus forty degrees Celsius to one hundred fifty degrees Celsius
• Operating Humidity: five to ninety-five percent RH
• Enclosure Rating: NEMA 2 (IP54)
• Approvals: UL60730, IEC 60730-1 and Part 2-14, UL1097 for Double Insulation, CE Certification Low Voltage Directive 2014/35/EU, CE EMC 2004/108/EC
• Weight: one point seven lbs
