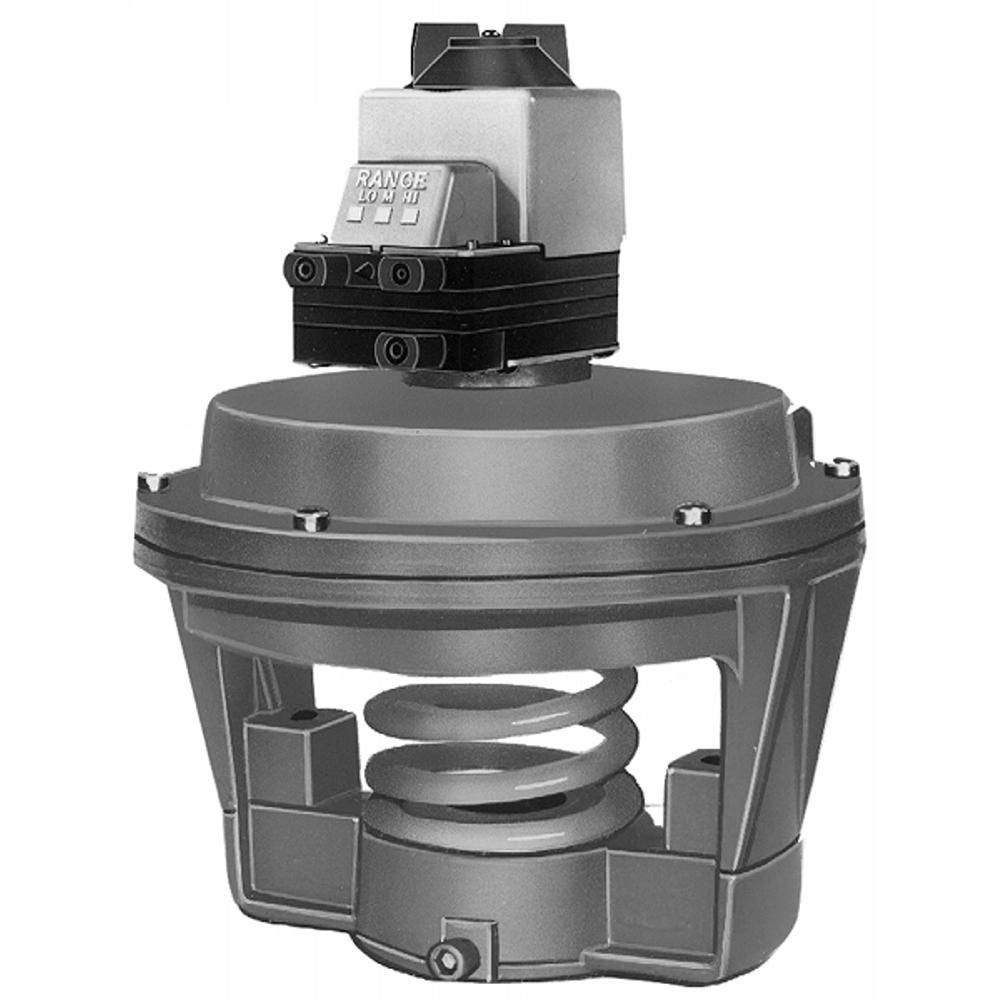

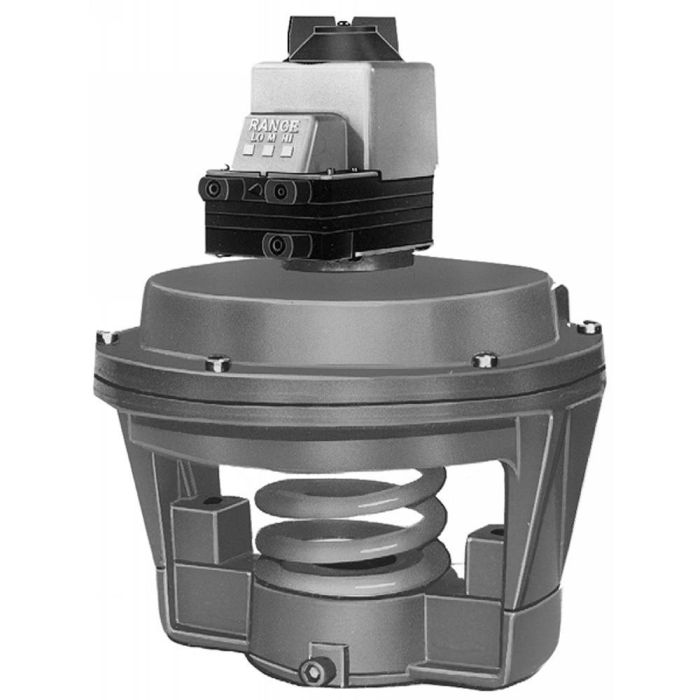

Honeywell MP953E1400/U Pneumatic Fail-Safe Spring Return

Product Description

The Honeywell MP953E1400/U is a pneumatic fail-safe spring return actuator. This device operates within a pressure range of four to eleven psi, ensuring effective control in HVAC systems. The actuator provides reliable operation for steam, hot, or cold liquid systems.

• Rolling diaphragm design for longevity
• Simple installation fitting onto valves
• Compatible with direct or reverse-action control

Product Highlights

This actuator features a robust design suitable for various applications in HVAC environments.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MP953E1400/U

Technical Specifications

• Dimensions: 13 inches diameter x 18.125 inches high
• Operating Pressure: 25 psi maximum
• Temperature Range: 0 F to 140 F
• Stroke Length: 1.5 inches
• Humidity Range: 5% to 95% RH
• Actuator Type: Fail Safe Spring Return
• Air Connections: Pilot barbed fitting for 5/32 inch O.D. tubing
• Sensitivity: High actuator force
