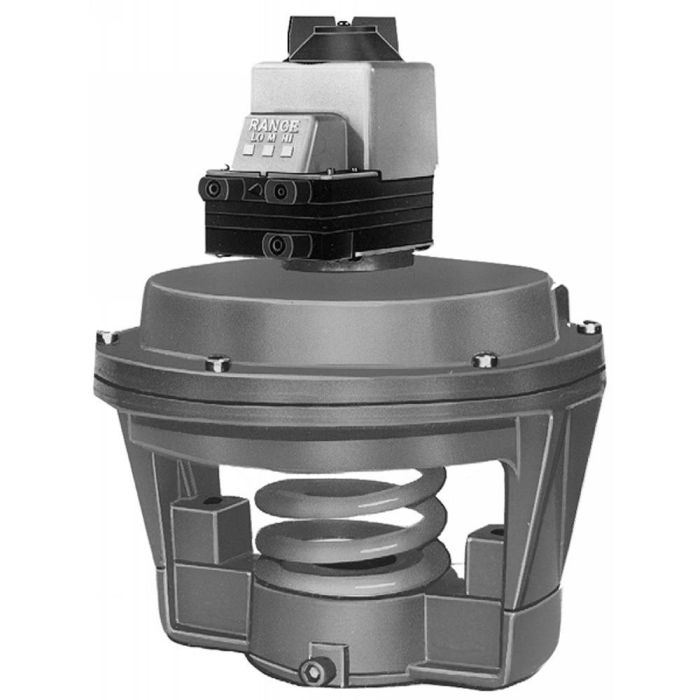

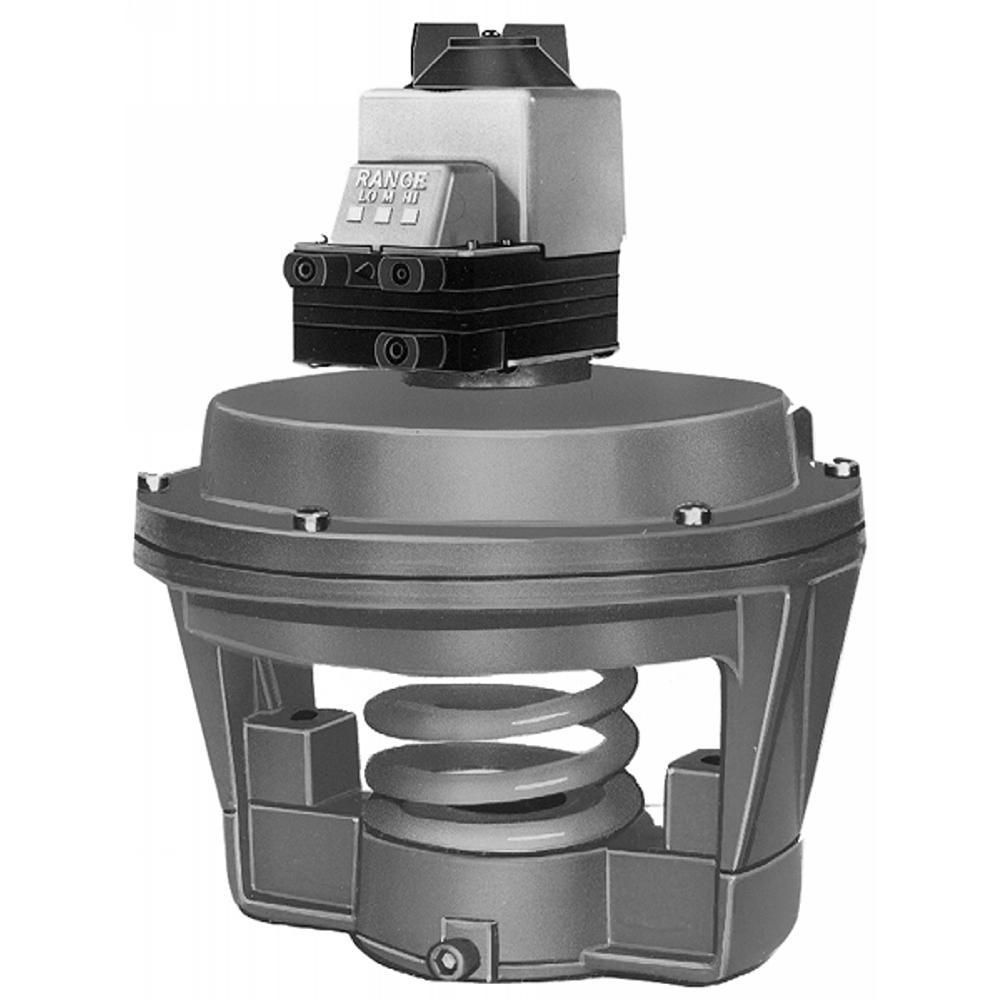

Honeywell MP953E1368/U Pneumatic Fail-Safe Spring Return Actuator

Product Description

The Honeywell MP953E1368/U is a pneumatic fail-safe spring return actuator designed for HVAC systems. This actuator ensures reliable control over steam or liquid flow in various applications, particularly with V5011, V5013, and VGF valve assemblies.

• Rolling diaphragm for extended service life.
• Easily attaches to valves with a straightforward installation process.
• Supports both direct and reverse action control.

Product Highlights

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MP953E1368/U

Technical Specifications

• Dimensions: Eight inches diameter x eleven and one-eighth inches high
• Operating Pressure Range: Four psi to eleven psi
• Maximum Safe Operating Pressure: Twenty-five psi
• Temperature Range: Zero to one hundred forty degrees Fahrenheit
• Stroke Length: Three-quarters inch
• Actuator Force: Medium
• Humidity Range: Five to ninety-five percent relative humidity
• Connections: Barbed fittings for pilot and main air connections
