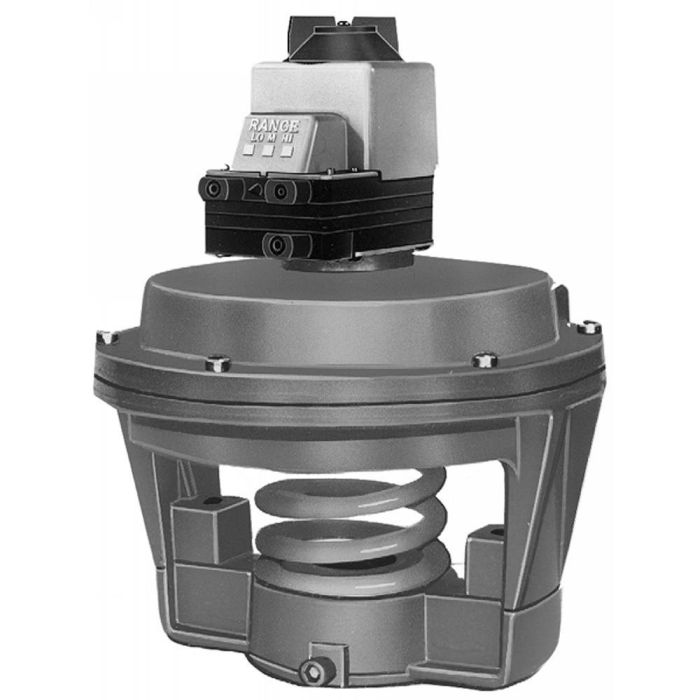

Honeywell MP953E1319/U Pneumatic Fail-Safe Spring Return

Product Description

The Honeywell MP953E1319/U is a pneumatic fail-safe spring return actuator designed for effective control in HVAC systems. It operates within a pressure range of four psi to eleven psi and features a three-quarter inch stroke. This actuator is ideal for controlling steam, hot, or cold liquids by managing valve assemblies such as V5011 and V5013.

• Direct acting with a low force actuator.
• Rolling diaphragm enhances durability and reduces hysteresis.
• Easy installation and engagement with the valve stem.

Product Highlights

This actuator supports universal application in various HVAC systems due to its compatibility with multiple valve types.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MP953E1319/U

Technical Specifications

• Operating Temperature Range: 0 F to 140 F (-18 C to 60 C)
• Maximum Safe Operating Pressure: 25 psi (172 kPa)
• Dimensions: 5 inches diameter x 9.25 inches high
• Actuator Type: Valve with spring return
• Stroke Length: 0.75 inches (19 mm)
• Humidity Range: 5% to 95% RH
• Air Connections: Barbed fittings for 5/32 inch and 1/4 inch O.D. plastic tubing
