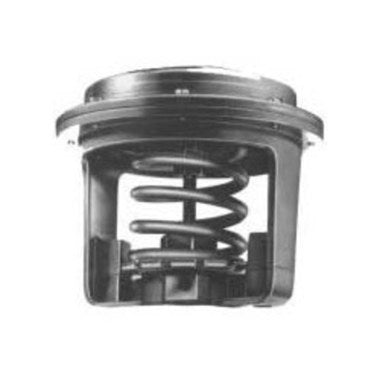

Honeywell MP953C1471/U Pneumatic Fail-Safe Spring Return

Product Description

The Honeywell MP953C1471/U is a pneumatic fail-safe spring return actuator designed for efficient control in HVAC systems. It operates within a pressure range of two psi to seven psi and features a robust rolling diaphragm for durability. This actuator easily connects to various valves and can be installed after the valve piping is complete.

• Direct or reverse action control
• Simple slide lock engagement with valve stem
• Compatible with dual barbed fittings for versatile tubing connections

Product Highlights

This actuator supports proportional control of steam and fluids, ensuring reliable operation in commercial building systems.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MP953C1471/U

Technical Specifications

• Operating Conditions: 0 F to 140 F (-18 C to 60 C)
• Maximum Safe Operating Pressure: 25 psi (172 kPa)
• Dimensions: 13 inches diameter x 10 inches high
• Stroke: 1.5 inches (38 mm)
• Actuator Type: Valve
• Fail Safe Mode: Spring Return
• Air Connections: Dual barbed fitting for 5/32 inch O.D. and 1/4 inch O.D. plastic tubing
