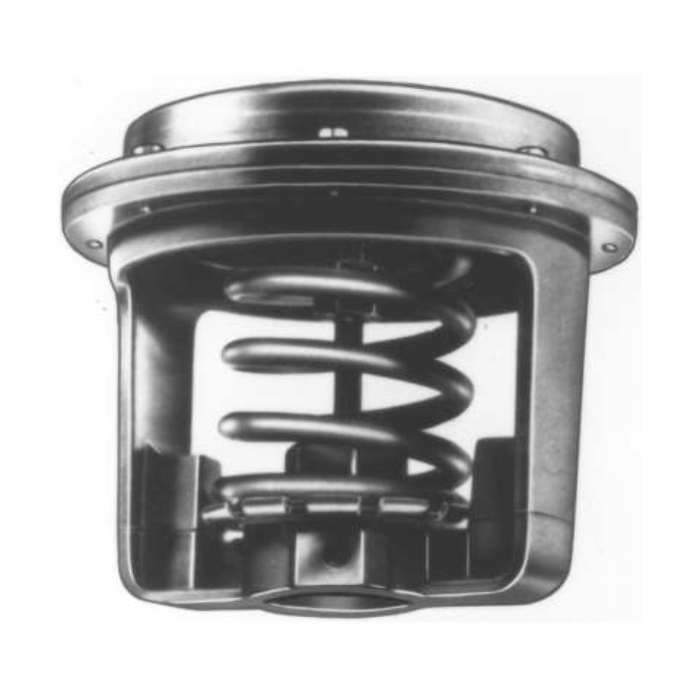

Honeywell MP953C1075/U Pneumatic Fail-Safe Spring Return

Product Description

The Honeywell MP953C1075/U is a pneumatic fail-safe spring return actuator designed for reliable control in HVAC applications. This actuator operates effectively within a pressure range of eight to twelve psi and features a 3/4 inch stroke length.

• Rolling diaphragm for long life and low hysteresis
• Slide lock feature allows simple engagement to valve stem
• Can be installed after piping valve

Product Highlights

This actuator is suitable for use with steam, hot liquids, or cold liquids, providing proportional control through various valve assemblies. It is designed to ensure ease of attachment and operational reliability.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MP953C1075/U
• Availability: Out of Stock

Technical Specifications

• Operating Conditions: 0 F to 140 F (-18 C to 60 C)
• Dimensions: 8 inches diameter, 6.5 inches high
• Maximum Safe Operating Pressure: 25 psi
• Actuator Force: Medium
• Fail Safe Mode: Spring Return
• Air Connections: Dual barbed fitting for 5/32 inches O.D. and 1/4 inches O.D. plastic tubing
• Stroke Length: 3/4 inches
