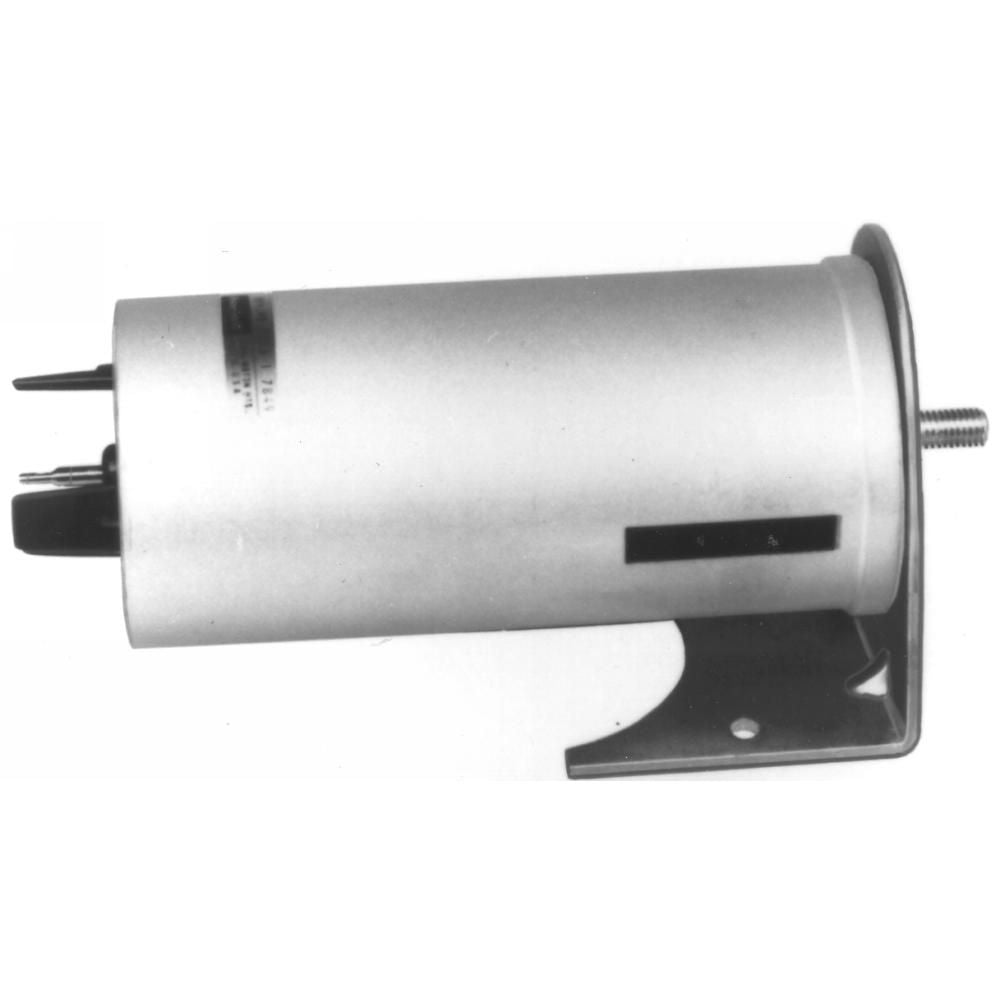

Honeywell MP909E1018/U Pneumatic Fail-Safe Spring Return

Product Description

The Honeywell MP909E1018/U is a pneumatic fail-safe spring return actuator designed for reliable performance in HVAC systems. This actuator features a dual barbed fitting suitable for tubing with outside diameters of five thirty-seconds inches or one-quarter inch. With a stroke length of four inches, it operates efficiently under conditions ranging from negative twenty-eight degrees Fahrenheit to one hundred sixty degrees Fahrenheit.

• Dual barbed fitting for 5/32 in. or 1/4 in. O.D. tubing
• 4 in. stroke length
• Max operating pressure of 30 PSI

Product Highlights

This actuator is built with a rugged aluminum body for durability and features a positive leak-proof seal.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MP909E1018/U

Technical Specifications

• Stroke: 4 inches
• Max Pressure (PSI): 30
• Air Connections: Dual barbed fitting for 5/32 or 1/4 O.D. tubing
• Operating Conditions: -28 F to 160 F (-33 C to 71 C)
• Features: Rugged aluminum body, low-friction shaft bearing, protected barb connector
• Linkage Kit: Includes fixed external mounting bracket with ball joint
