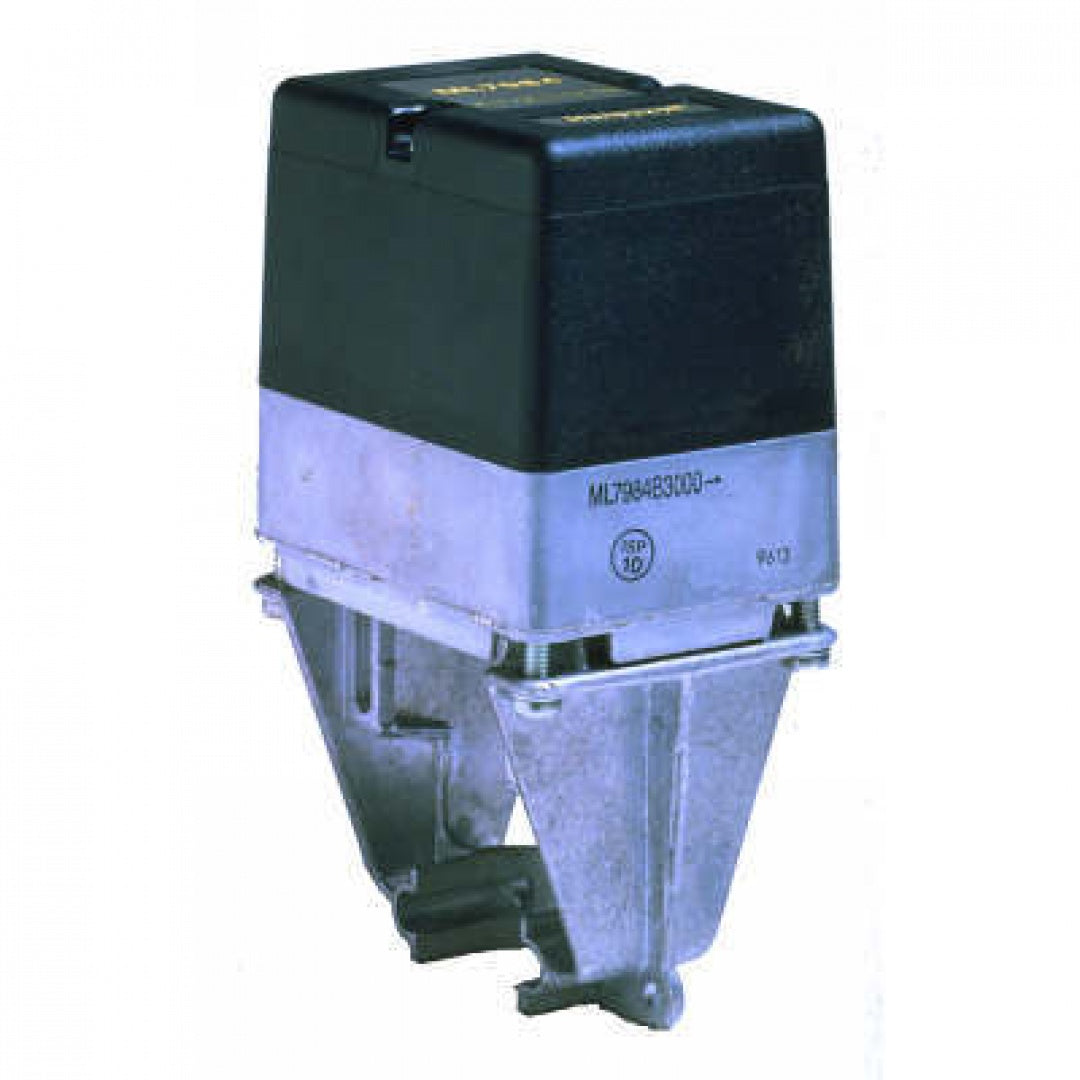

Honeywell ML7984A4009/U Direct Coupled Actuator 160 lbf

Product Description

The Honeywell ML7984A4009/U is a direct coupled actuator with a capacity of 160 lbf. It is designed for valves needing a motorized solution. This actuator operates on a 24 VAC supply and is suitable for various HVAC applications.

• Self-adjusting motorized valve linkage
• Compatible with V5011 and V5013 globe valves
• Available auxiliary switches for additional functionality

Product Highlights

The Honeywell actuator provides a compact design for easy installation and effective operation within confined spaces, making it ideal for commercial building controls.

Product Information

Standard Information

• Brand: Honeywell
• MPN: ML7984A4009/U

Technical Specifications

• Power Consumption: 24 VAC
• Torque Rating: 160 lbf
• Operating Temperature: 32 F To 131 F (0 C To 55 C)
• Dimensions: 6.81 inches high x 4 inches wide x 3.19 inches deep
• Weight: 2.2 lb
• Stroke: 1/2 to 1 inch
• Material: UV-stabilized plastic cover, aluminum base and yoke
