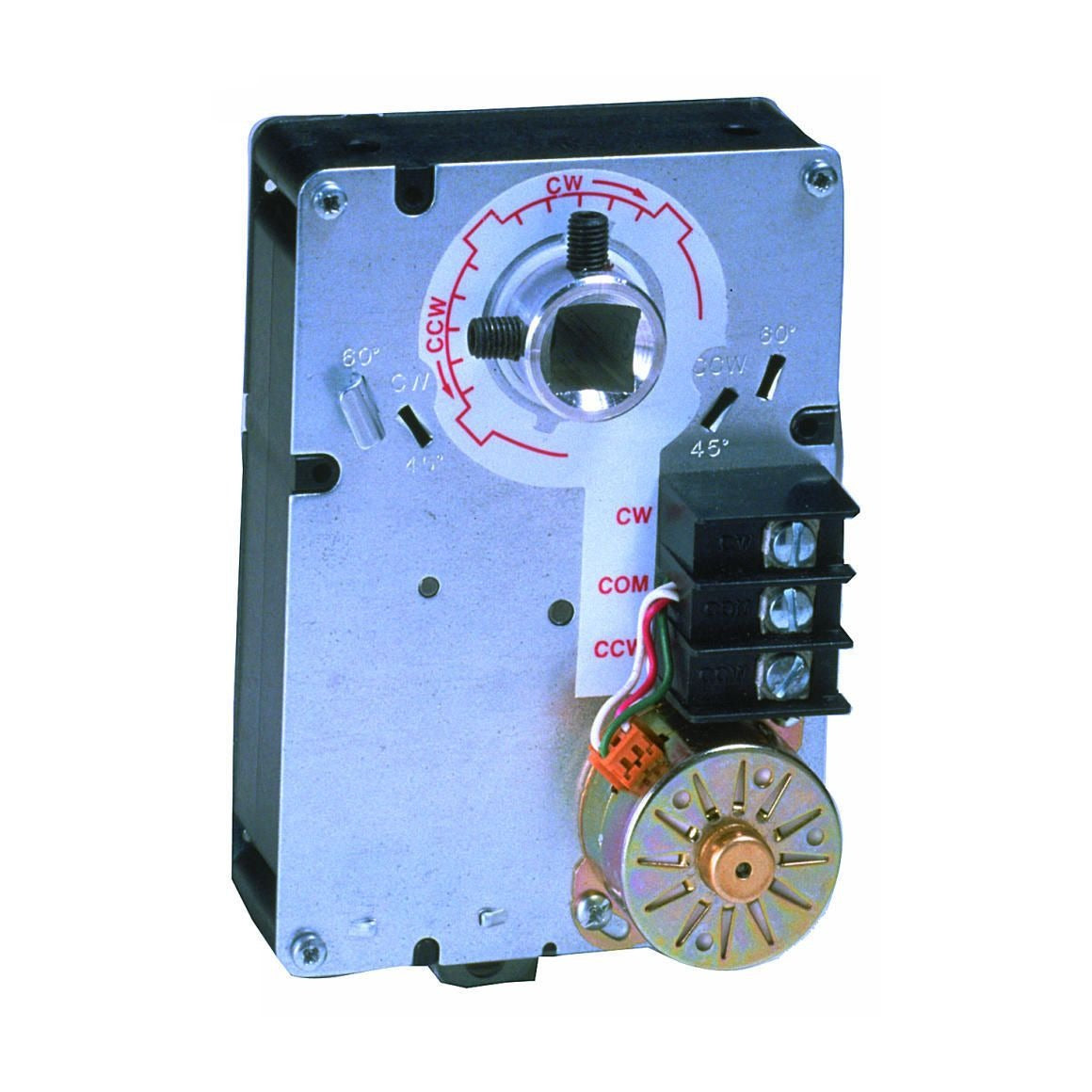

Honeywell ML6161A2009/C Direct Coupled Actuator 24 VAC (35 lb-in)

Product Description

Honeywell ML6161A2009/C is a direct-coupled actuator providing 35 lb-in torque for HVAC damper and valve actuation. It operates on 24 VAC floating control with an 18 VA rating, non-spring return design, and SPDT switching. The unit features magnetic coupling, manual declutch, field-addable auxiliary feedback potentiometer on select models, a 90 seconds runtime, NEMA 1 rating, and an operating temperature range of 20 F to 125 F (-18 C to 50 C).

• 24 VAC floating control, 18 VA rating, 35 lb-in torque, non-spring return
• SPDT switching; auxiliary switches selective NO or NC, pilot duty 50 VA at 24 VAC, 3 degrees switch differential
• Magnetic coupling, manual declutch, 0 to 30 degrees minimum position adjustment, 90 seconds runtime

Product Highlights

Direct-coupled 24 VAC actuator for HVAC dampers and valves with 35 lb-in torque and SPDT switching.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ML6161A2009/C
