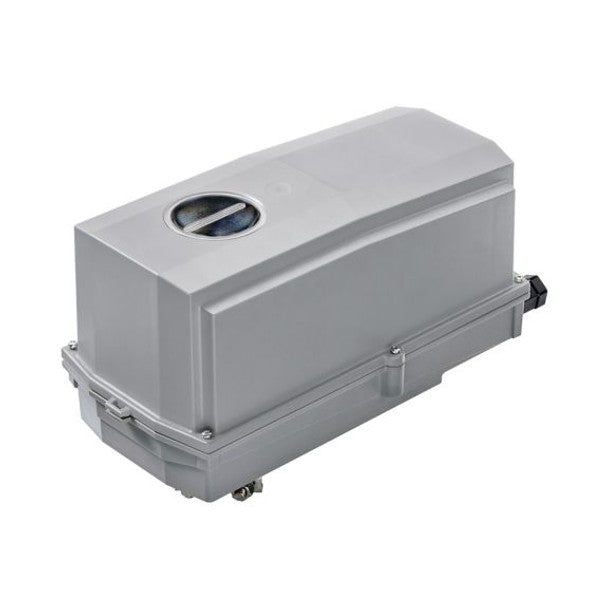

Honeywell MBP6L5N4 Butterfly Valve Actuator, Floating, 800 lb-in

Product Description

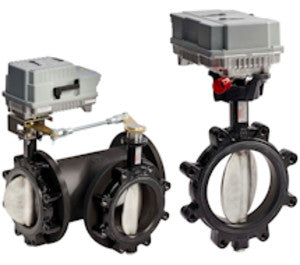

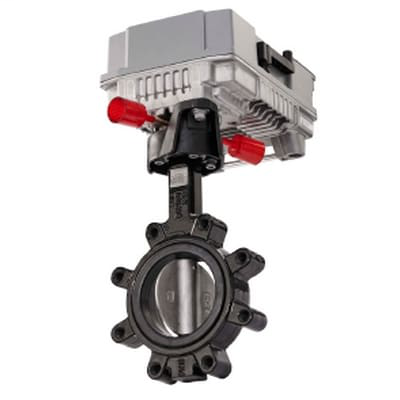

The Honeywell MBP6L5N4 is a butterfly valve actuator that operates with a floating control signal and provides a strong torque of 800 lb-in. It is designed to work with VR and VH series butterfly valves. The actuator requires a power supply of 24VAC or DC and features fail-in-place functionality to maintain its position during power loss. The construction allows for direct coupling, ensuring ease of installation. It also comes with a manual override for immediate operation.

• Floating control signal for flexible applications.
• Delivers up to 800 lb-in torque.
• Includes a push button manual override.

Product Highlights

This actuator is built for reliability and efficiency, suitable for a variety of environments and conditions.

Product Information

Standard Information

• Brand: Honeywell
• Application: Butterfly Valves

Technical Specifications

• MPN: MBP6L5N4
• Valve Compatibility: VR and VH series
• Control Signal: Floating ; Two-Position (SPDT)
• Supply Voltage: 24 V AC ; 24 V DC
• Torque: 800 lb-in ; 90 Nm
• Power Loss Action: Fail-in-place
• Manual Override Included: Yes, Push Button
• Angle of Rotation: 90 degrees
• Connection Type: Terminal Block
• Driving Power Consumption: 12 VA
• IP Rating: IP66/67
• Maximum Operating Ambient Temperature: 122 °F ; 50 °C
• Minimum Operating Ambient Temperature: -22 °F ; -30 °C
• NEMA Rating: NEMA 4X
• Regulatory Approvals: CE ; cULus
