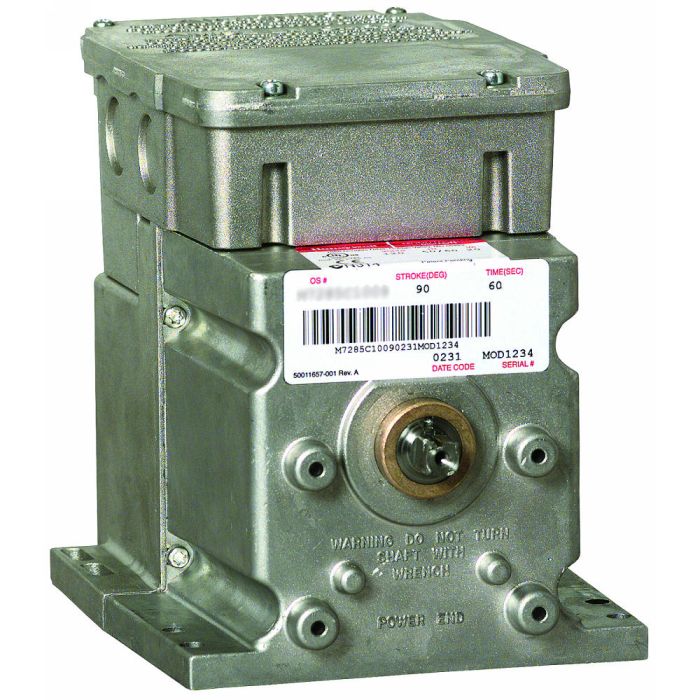

Honeywell M9182D1023/U Modutrol IV Motor Spring Return

Product Description

The Honeywell M9182D1023/U is a Modutrol IV motor designed for spring return applications. This actuator utilizes a torque rating of sixty in-lb and operates at twenty-four volts. It features a proportional control signal with a resistance of one hundred thirty-five ohms, making it suitable for numerous HVAC control applications.

• Integral junction box provides NEMA 3 weather protection when mounted upright.
• Spring return feature restores the motor to its normal position during power failure.
• Field adjustable stroke ranging from ninety to one hundred sixty degrees.

Product Highlights

This motor provides reliable operation across a wide temperature range and includes quick-connect terminals for ease of installation. It also has auxiliary switch options that can be factory or field mounted.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: M9182D1023/U

Technical Specifications

• Power Consumption: 20 VA
• Operating Conditions: -40 F to 150 F (-40 C to 60 C)
• Electrical Connections: Quick-Connect Terminals
• Style: Dampers and Damper Actuators
• Product Category: Commercial Building Controls
• Manufacturer: Honeywell
