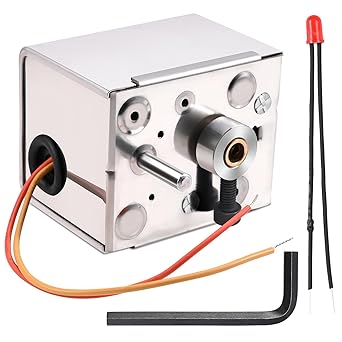

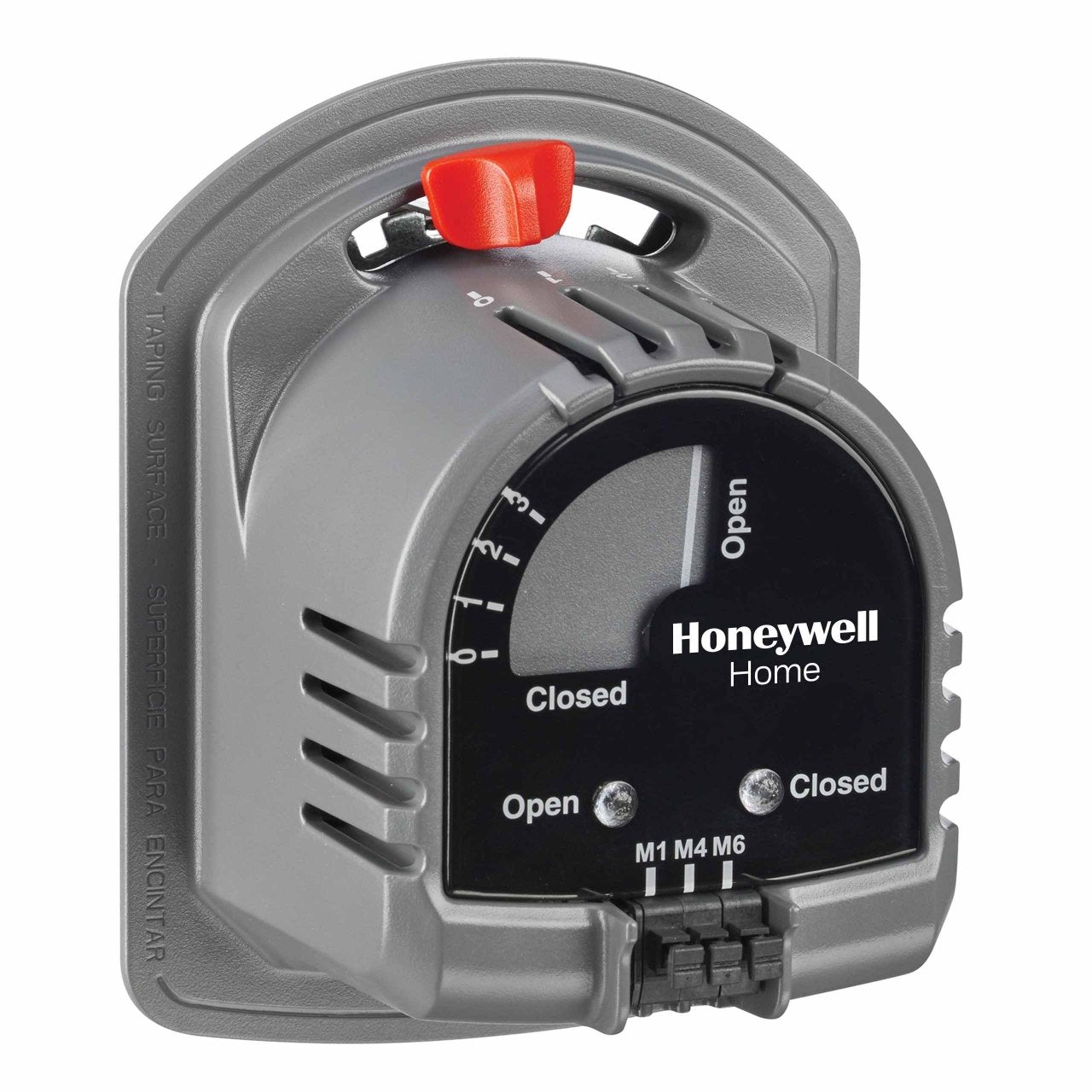

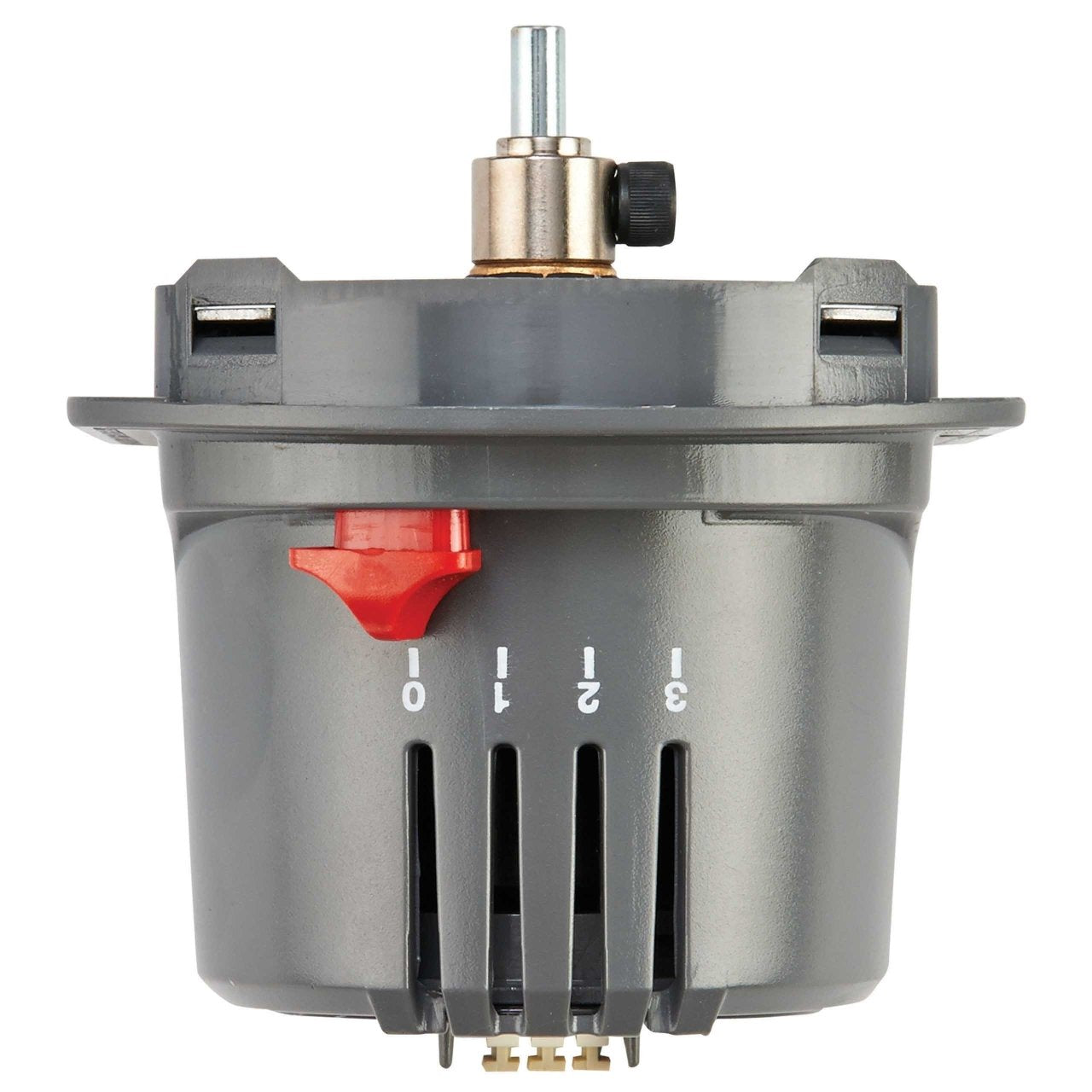

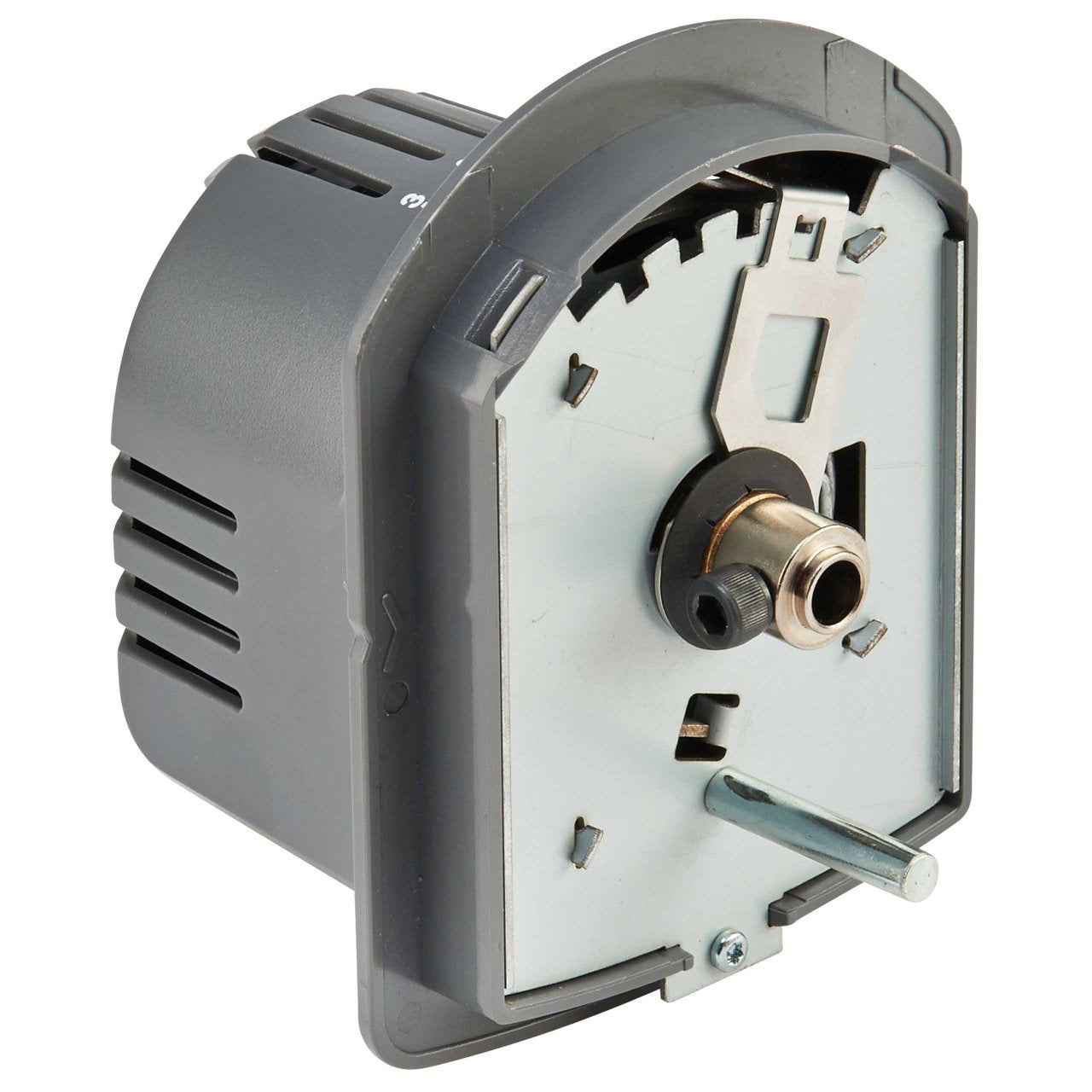

Honeywell M847D1004 Damper Motor Actuator Replacement M847D1004

Product Description

The HONEYWELL M847D1004 damper motor is compatible with Honeywell's M847D1004, M847D1012, ARD, and ZD series damper motors. This 24Vac spring return damper actuator is designed to operate directly driven zone dampers, controlling airflow in ducts. It replaces most Honeywell 2 wire normally open, power to close spring return motors and the Hansen 135-6 motor.

• Compatible with Honeywell's M847D1004, M847D1012, ARD and ZD series damper motors
• Replaces most Honeywell 2 wire normally open, power to close spring return motors
• Can be used in Normally Open (N.O.) or Normally Closed (N.C.) venting installations

Product Highlights

This damper motor features easy installation with direct connection to damper shaft and multi-poise mounting. It has a stainless steel housing and metal gears for durability.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: M847D1004

Technical Specifications

• Brand: TOVEN-RV
• Material: Stainless Steel
• Direct replacement: for M847D1004
• Type: Low voltage, spring-return damper actuator
• Operation: Power closed, spring open motor
• Timing: 30 seconds power open/10 seconds spring return
• Features: Simplified, adjustable range stops
• Mounting: Equipped with anti-rotation and drive shaft extensions for direct mounting to 7/16 inch diameter coupling style dampers
• Wire terminals: M1-Power; M6 Common; M4 (optional)-LED indication
