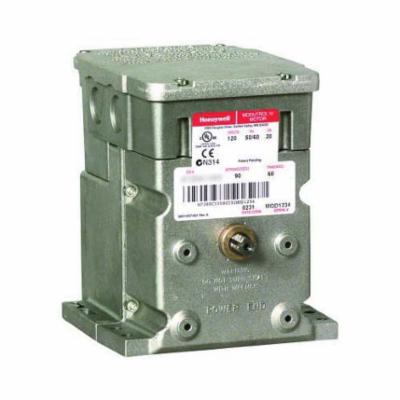

Honeywell M7284A1004/U Modutrol IV Motor Non-Spring Return

Product Description

The Honeywell M7284A1004/U Modutrol IV Motor is designed for controlling dampers in HVAC systems. It operates efficiently at 120VAC and provides a torque rating of 150 in-lb.

• Features a non-spring return design for optimal performance
• Suitable for use with an adjustable stroke between 90 to 160 degrees
• Wiring box offers NEMA 3 weather protection for outdoor applications

Product Highlights

This motor is engineered to work seamlessly with valves and dampers in residential and commercial HVAC settings.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: M7284A1004/U

Technical Specifications

• Power Consumption: 15 VA
• Temperature Range: -40 to 150 degrees F
• Mounting Type: Footed
• Housing Material: Die-Cast Aluminum
• Amperage Rating: 4 to 20 mA
• Torque Rating: 150 in-lb
• Electrical Connections: Screw terminals
• Dimensions: 6-7/16 inches high x 5-1/2 inches wide x 7-5/16 inches deep
