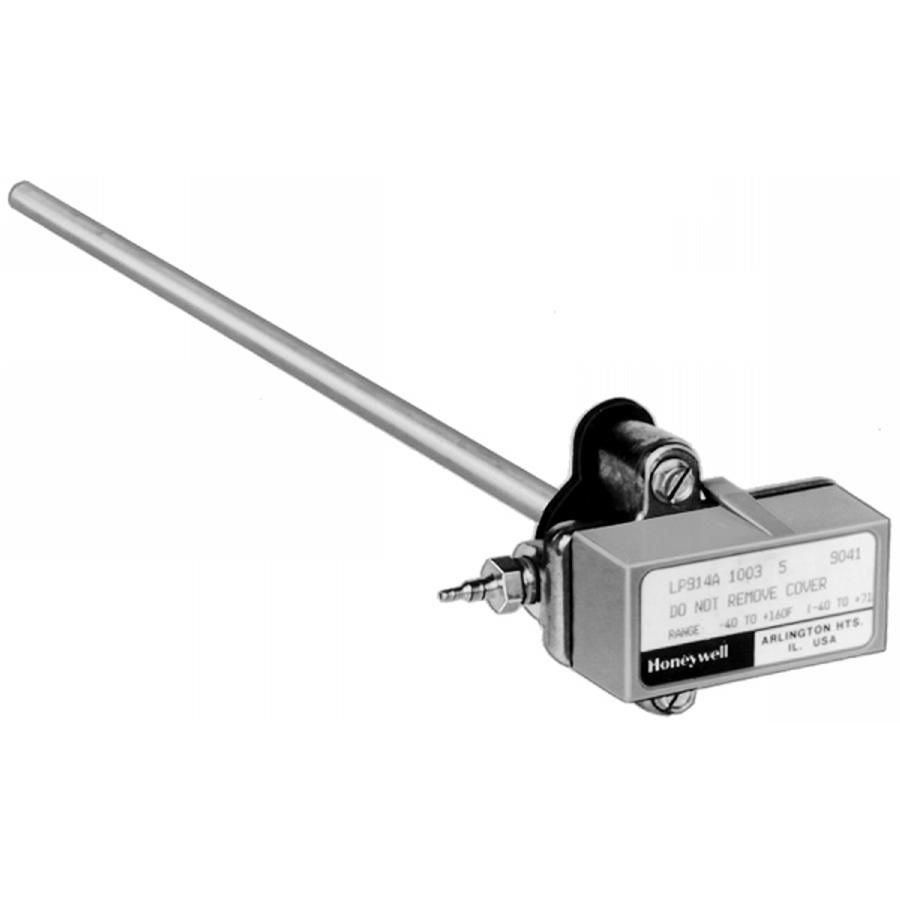

Honeywell LP914A1144/U Pneumatic Temperature Sensor

Product Description

The Honeywell LP914A1144/U is a pneumatic temperature sensor designed for duct mounting. This unit features a robust rod and tube sensor element with an insertion length of fifteen inches. The sensor operates with a pressure output range of three to fifteen psi, making it suitable for various applications in commercial building environments.

• Direct-acting with a one-pipe system for straightforward installation.
• Corrosion-resistant construction aids in longevity and reliability.
• Continuous temperature indication can be achieved through a compatible receiver gauge.

Product Highlights

This pneumatic temperature sensor is ideal for HVAC systems needing accurate and consistent temperature monitoring. It is commonly used with RP908 and RP920 Controllers for proportional control of pneumatic valves or dampers.

Product Information

Standard Information

• Application: Temperature sensor
• Mounting: Duct mount

Technical Specifications

• Operating Temperature Range: 25°F to 125°F; -4°C to +52°C
• Dimensions: Body height is 2 inches and width 2.5 inches
• Maximum Safe Operating Pressure: 25 psi (172 kPa)
• Airflow Usage: 0.019 scfm (540 sccm)
• Pressure Ratings: Output 3 psi to 15 psi; Supply 18 psi
• Sensor Element: Rod and tube
• Number of Pipes: 1
