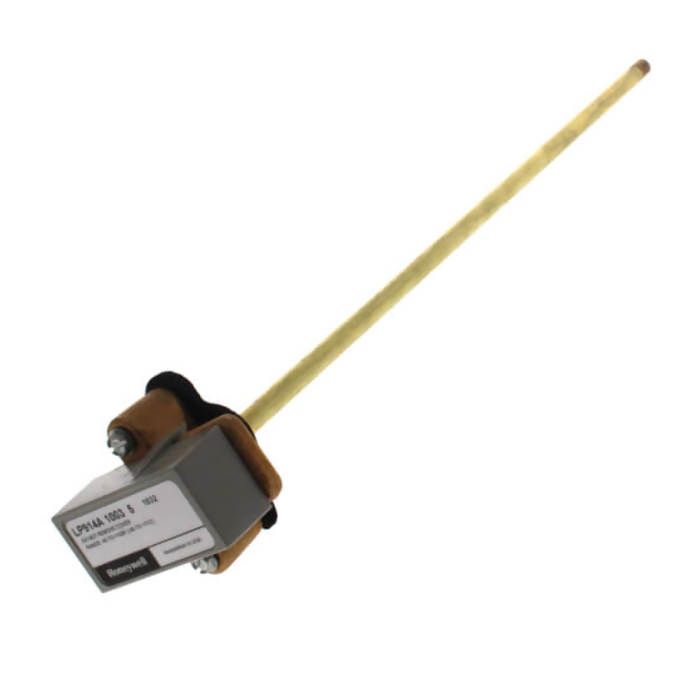

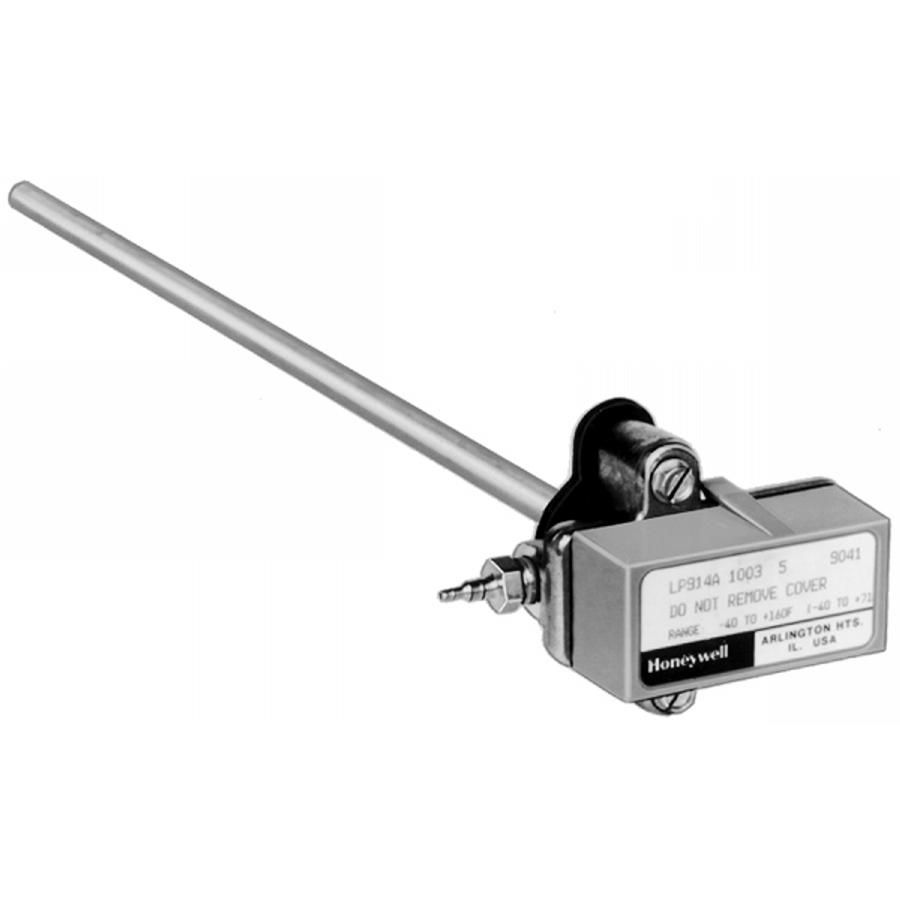

Honeywell LP914A1052/U Pneumatic Temperature Sensor Power 7 in. Replacement MPN

Product Description

The Honeywell LP914A1052/U is a pneumatic temperature sensor designed for reliable temperature measurement in various HVAC systems. This sensor features a seven-inch element length and offers an output range of three to fifteen psi, making it suitable for direct-acting applications.

• Corrosion resistant
• Continuous temperature indication available by using receiver gauge
• One-pipe and rod and tube mounting options

Product Highlights

This pneumatic temperature sensor is equipped for use in commercial building controls, facilitating effective operation of pneumatic valve and damper actuators.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: LP914A1052/U

Technical Specifications

• Application: Temperature Sensor
• Airflow Usage: 0.019 scfm (540 sccm)
• Connections: Push-on barb for five thirty-second inch (4 mm) and one quarter inch (6 mm) O.D. tubing
• Dimensions: Body: two inches high x two and a half inches wide
• Maximum Safe Operating Pressure: 25 psi (172 kPa)
• Mounting: Well Sensor
• Operating Temperature Range: Maximum 265 F (129 C)
• Insertion Length: seven inches (178 mm)
• Pressure Ratings: Output 3 psi to 15 psi; Supply 18 psi (21 kPa to 103 kPa; 124 kPa)
• Action: Direct Acting
• Number of Pipes: 1
• Sensor Range: 40 F to 240 F (5 C to 115 C)
