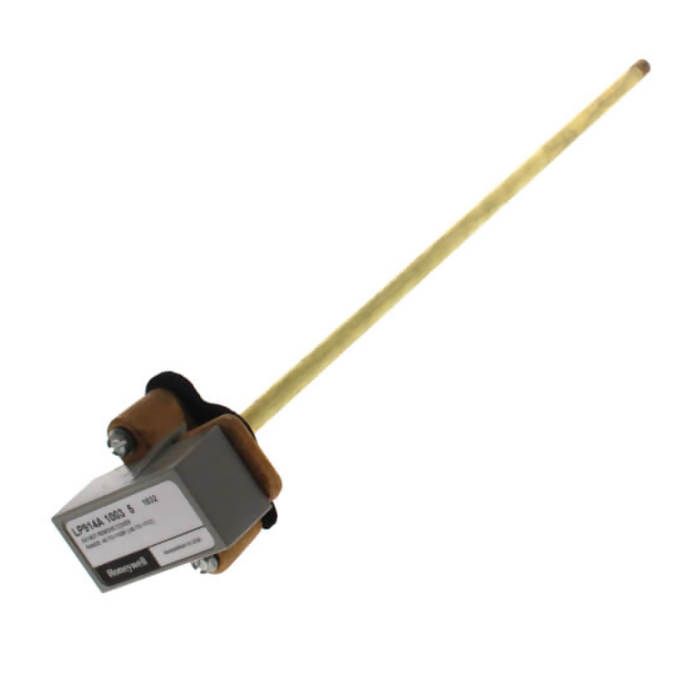

Honeywell LP914A1003/U Pneumatic Temperature Sensor

Product Description

The Honeywell LP914A1003/U is a pneumatic temperature sensor designed for accurate temperature measurement in HVAC systems. This sensor features a duct mount with a rod and tube element for reliable performance.

• Temperature range from -40°F to 160°F.
• 15 inches element length.
• Output range of 3 to 15 psi.

Product Highlights

Ideal for pneumatic control applications in commercial buildings, this sensor offers corrosion resistance and continuous temperature indication when used with a receiver gauge.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: LP914A1003/U

Technical Specifications

• Application: Temperature Sensor
• Airflow Usage: 0.019 scfm (540 sccm)
• Connections: Push-on barb for five thirty-second inch and one-quarter inch O.D. tubing
• Body Dimensions: 2 inches high x 2.5 inches wide
• Maximum Safe Operating Pressure: 25 psi
• Mounting: Duct mount
• Operating Temperature Capacity: 265°F maximum
• Sensor Range: -40°F to +160°F
