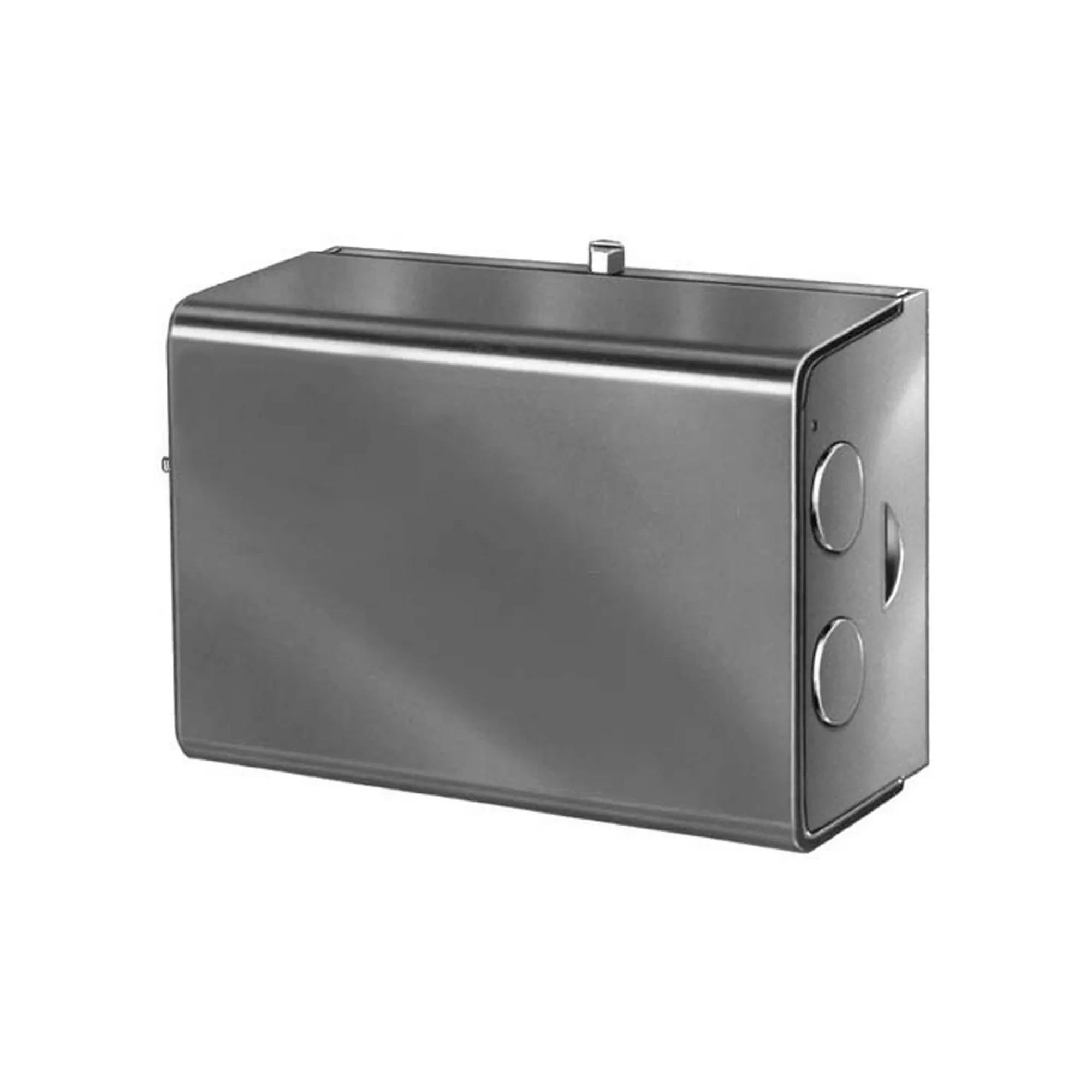

Resideo L8124E1016/U Triple Aquastat Relay 120 Vac (Vertical mount)
Availability:
In Stock
Ships same day if ordered by 12 pm
- $395.53
- $395.53
- Unit price
- / per
✓
Better Price in Cart
Manufacturer pricing rules prevent us from advertising our discount — no account or email required to see it.
Manuals:
-
Secure Payments
-
Easy Returns
-
Expert Advice
-
Fast Shipping
Product Description

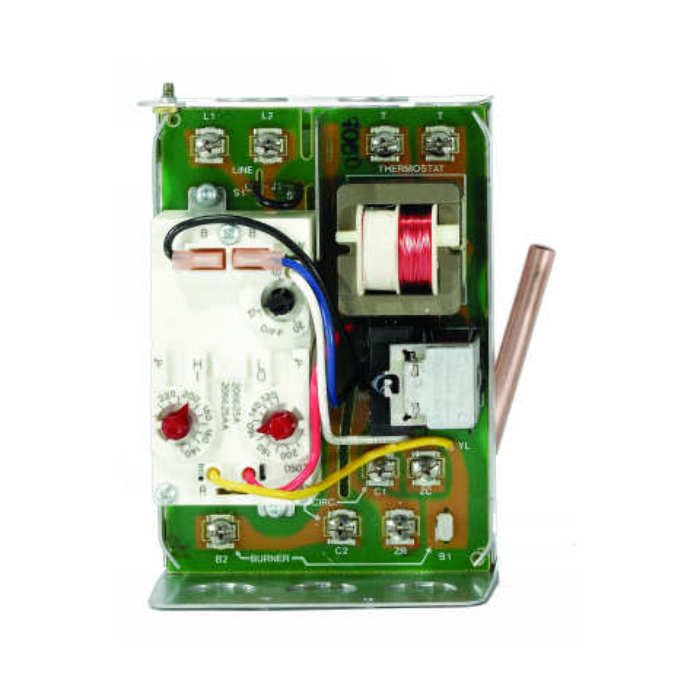

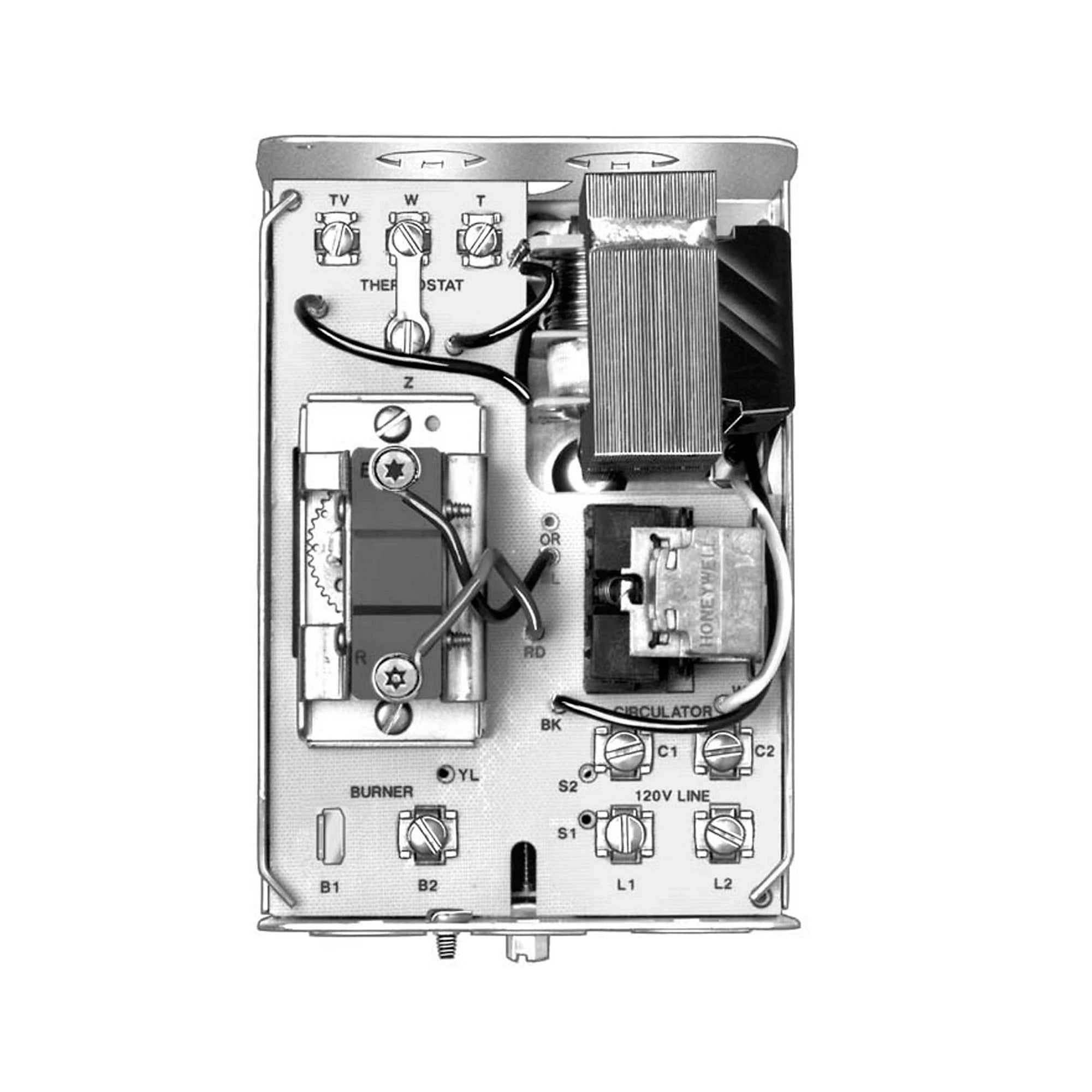

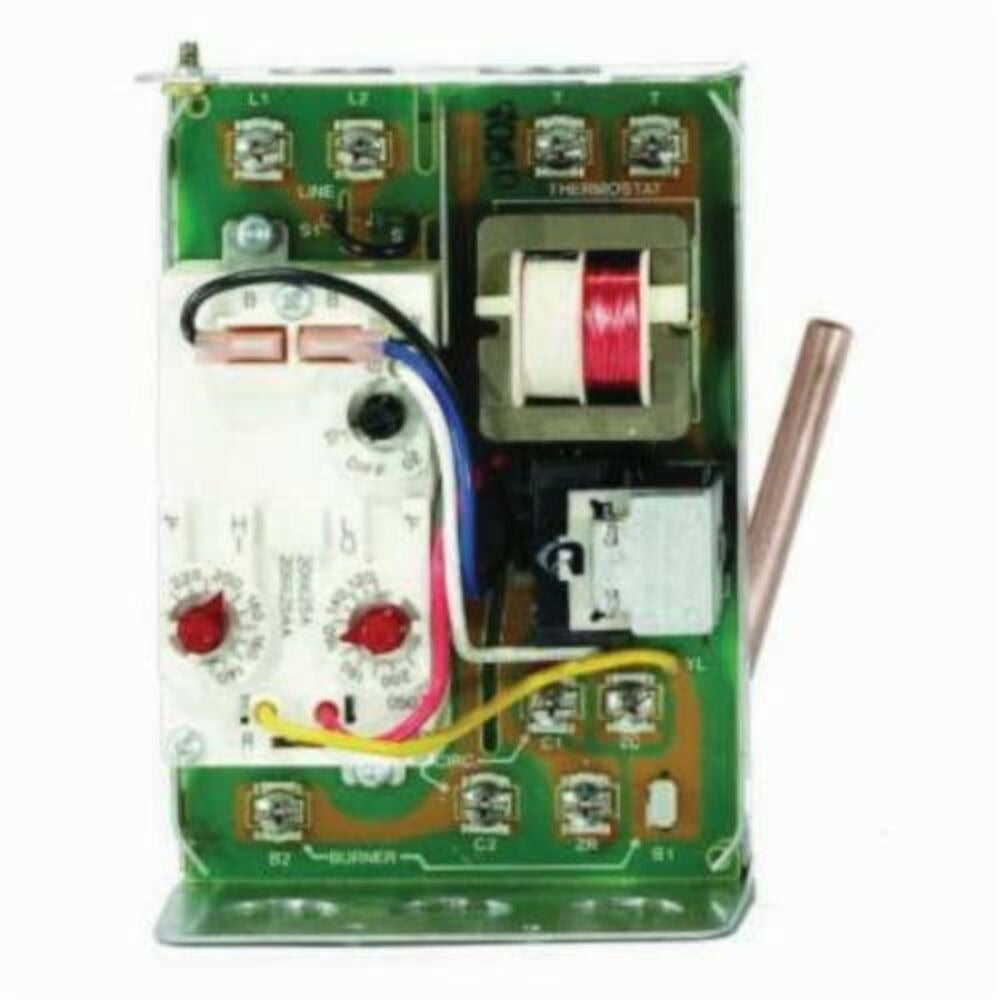

Resideo L8124E1016/U is an immersion-type triple aquastat relay that combines high-limit protection with adjustable low-limit and circulator control for forced hydronic heating systems. It provides multizone control using separate circulators and R845 relays and mounts directly to the boiler. The unit uses a diaphragm powerhead with a Micro Switch assembly to sense boiler water temperature and is rated for 120 Vac operation with a 130 to 240 F temperature range.
- Immersion-type controller combining high limit protection, adjustable low limit differential, and circulator control for forced hydronic heating and domestic hot water service
- Provides multizone control with separate circulator and R845 relay per zone; mounts directly to the boiler (vertical mount)
- Diaphragm powerhead with Micro Switch assembly; low-limit differential adjustable 10 to 25 F, high limit fixed 10 F; requires 24 Vac thermostat with 0.2 A heat anticipator
Product Highlights
Triple immersion aquastat for forced hydronic systems with adjustable low-limit differential, fixed high-limit protection, Micro Switch sensing, and 120 Vac operation.
Product Information
Standard Information
- Brand: RESIDEO
- Manufacturer Part Number: L8124E1016/U
- Country of Origin: USA
Technical Specifications
