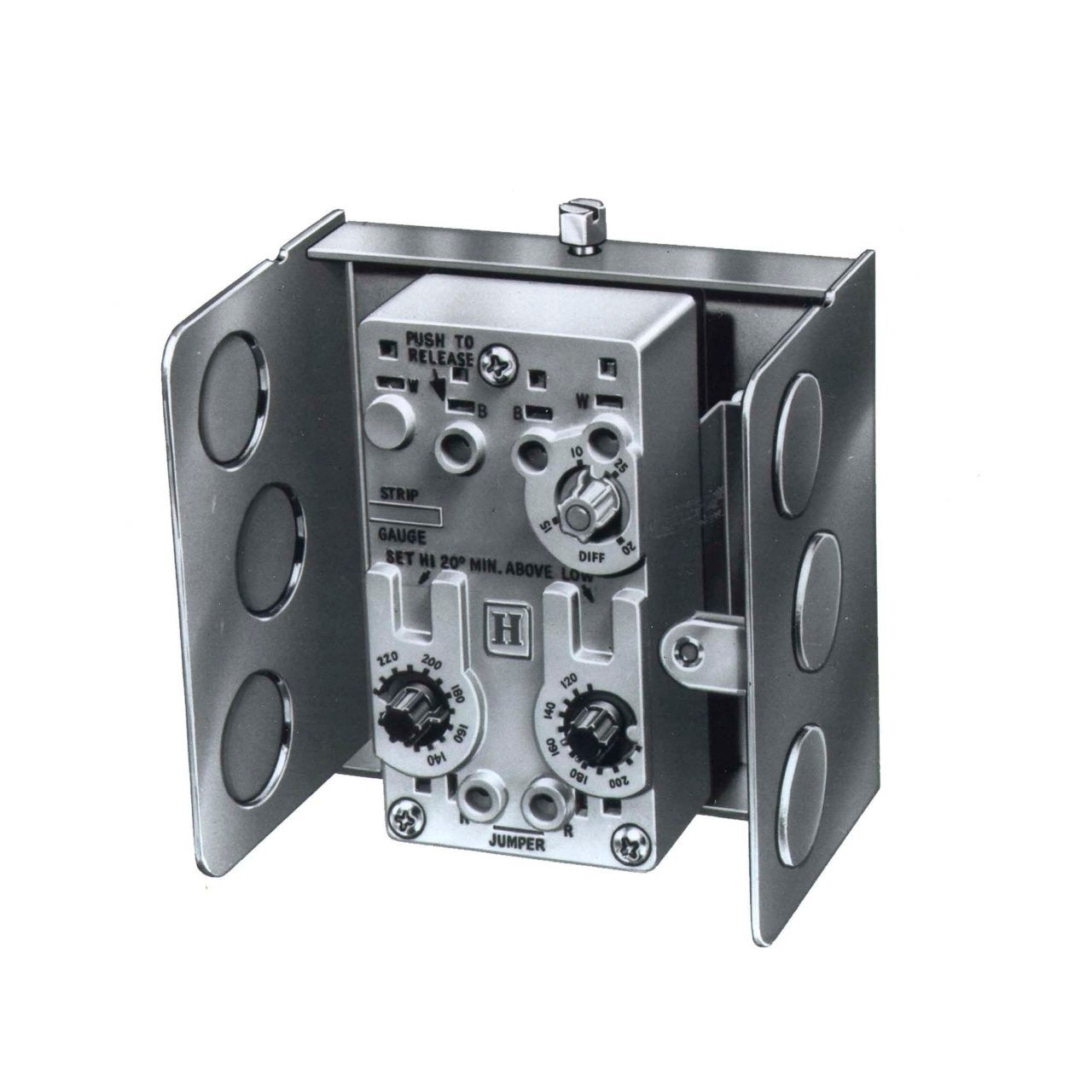

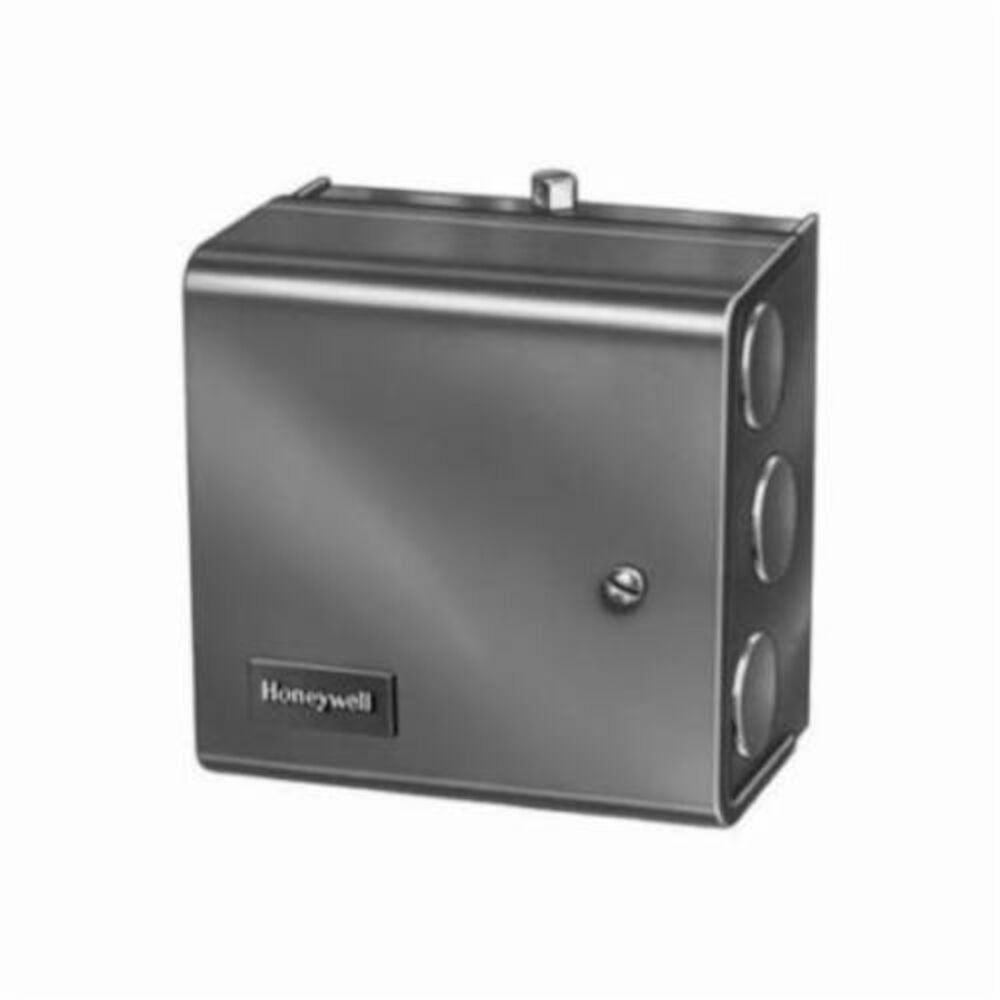

Resideo L4081B1047/U Aquastat Circulator and High Limit 130-240°F (Horizontal)

Brand: RESIDEO
SKU: L4081B1047/U
Availability: In Stock

Ships same day if ordered by 12 pm
$267.02
$267.02
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Resideo L4081B1047/U is an aquastat circulator and high-limit controller that regulates boiler and hydronic heating water temperature with a 130 to 240 °F set point range. It uses an immersion liquid-filled sensing element to actuate two SPST snap switches: a fixed 10 °F high limit and an adjustable low-limit differential of 10 to 25 °F. The unit mounts horizontally and includes a 3/4-14 NPT well spud for immersion installation.

  • Dual SPST control: separate high limit and circulator/low-limit switch with independent set points
  • Temperature control: 130–240 °F set point range; fixed 10 °F high-limit differential; 10–25 °F adjustable low-limit differential
  • Installation and ratings: immersion liquid-filled sensing element, 3/4-14 NPT well spud, horizontal mount, electrical ratings include 8 A @ 120 V AC and 5.1 A @ 240 V AC

Product Highlights

Dual SPST aquastat with 130–240 °F range, 10 °F fixed high limit, 10–25 °F adjustable low-limit differential, 3/4-14 NPT well spud

Product Information

Standard Information

  • Brand: RESIDEO
  • Manufacturer Part Number: L4081B1047/U
  • Country of Origin: Domestic
Technical Specifications
Brand
Resideo
Manufacturer Part Number
L4081B1047/U
Series
L4081B
Type
Aquastat circulator and high limit
Temperature Range
130 to 240 °F
High Limit Differential (Fixed)
10 °F
Low Limit Differential (Adjustable)
10 to 25 °F
Low Limit Set Point Range
110 to 220 °F
High Limit Set Point Range
130 to 240 °F
Switch Type
Two SPST snap switches
Switch Action
High limit breaks on temperature rise; Circulator switch makes on temperature rise
Electrical Ratings (Full Load)
8 A @ 120 V AC; 5.1 A @ 240 V AC
Electrical Ratings (Locked Rotor)
48 A @ 120 V AC; 30.6 A @ 240 V AC
Electrical Ratings (Millivolt)
0.25 A @ 0.25 to 12 V DC
Well Spud Size
3/4 in-14 NPT
Insulation Depth
1.5 in (38 mm)
Dimensions (Height)
3.88 in (98 mm)
Dimensions (Width)
4.13 in (108 mm)
Weight
1 lb
Mounting Type
Horizontal
Sensing Element
Immersion liquid-filled sensing element
Operating Relative Humidity
0% to 95% RH, non-condensing
Ambient Temperature Rating (Switches)
150 °F (66 °C)
Sensing Element Maximum Temperature
265 °F (129 °C)
Approvals and Standards
UL Listed (File No. MP466, Vol. 12, Sec. 4, Guide No. MBPR2); CSA Certified (File No. LR95329-1)
UPC
085267053433
