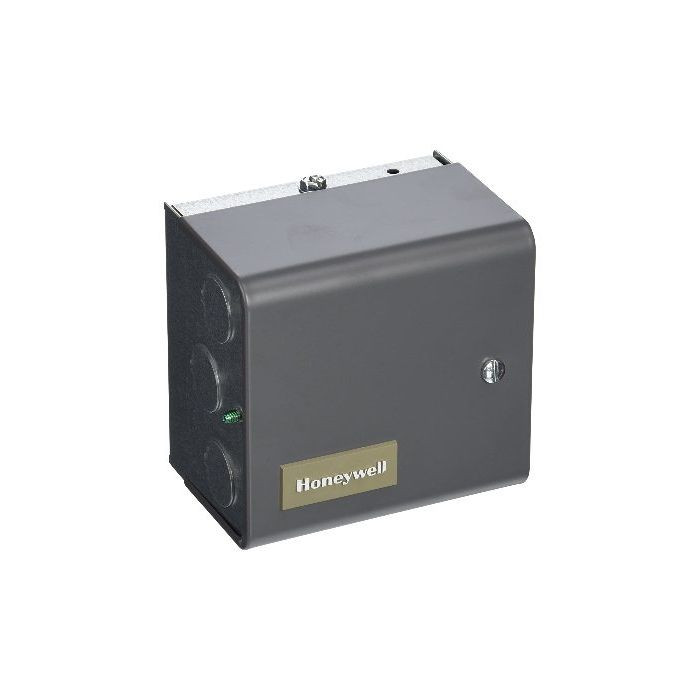

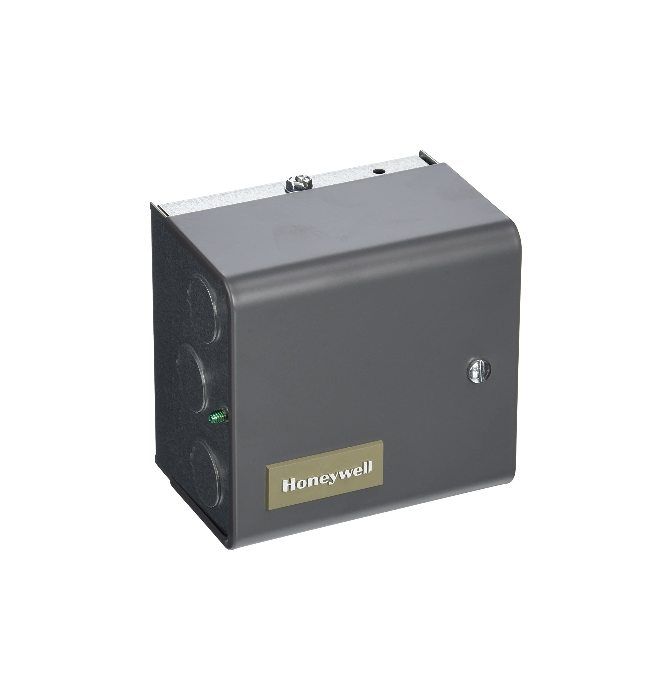

Honeywell L4081A1023/U High And Low Limit Aquastat Controller

Product Description

The Honeywell L4081A1023/U is a high and low limit aquastat controller suitable for multiple HVAC applications. This controller features a fixed high limit setting of ten degrees Fahrenheit and an adjustable low limit ranging from ten to twenty-five degrees Fahrenheit. Designed with a one and a half inches insulation depth, it supports SPST switching action and is intended for horizontal mounting.

• Immersion type liquid-filled sensing element
• Two snap switches for high and low limit control
• Easy installation with quick-connect push-in terminals

Product Highlights

The Honeywell L4081A1023/U aquastat controller efficiently regulates temperature by using an immersion sensing element, making it adaptable for various mounting positions.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: L4081A1023/U

Technical Specifications

• High Limit Setting: 10 degrees Fahrenheit (fixed)
• Low Limit Setting: 10 to 25 degrees Fahrenheit (adjustable)
• Insulation Depth: 1.5 inches
• Switch Type: SPST
• Mounting Orientation: Horizontal
• Adjustments: Accessible inside front cover
• Terminals: Push-in for quick connections
• Operation: Two SPST snap switches
