Honeywell L4006A2007 Aquastat Controller High/Low Limit 100-240 Degrees F 5-30 Degrees F Differential

Product Description

The Honeywell L4006A2007 Aquastat Controller manages heating systems by controlling the temperature between one hundred and two hundred forty degrees Fahrenheit. It is designed for applications in boilers and storage tanks. The controller provides a differential adjustment range from five to thirty degrees Fahrenheit and offers both horizontal and vertical mounting options.

• Temperature range: 100-240 degrees Fahrenheit
• Adjustable differential: 5-30 degrees Fahrenheit
• Snap-action SPST switch for reliable temperature control

Product Highlights

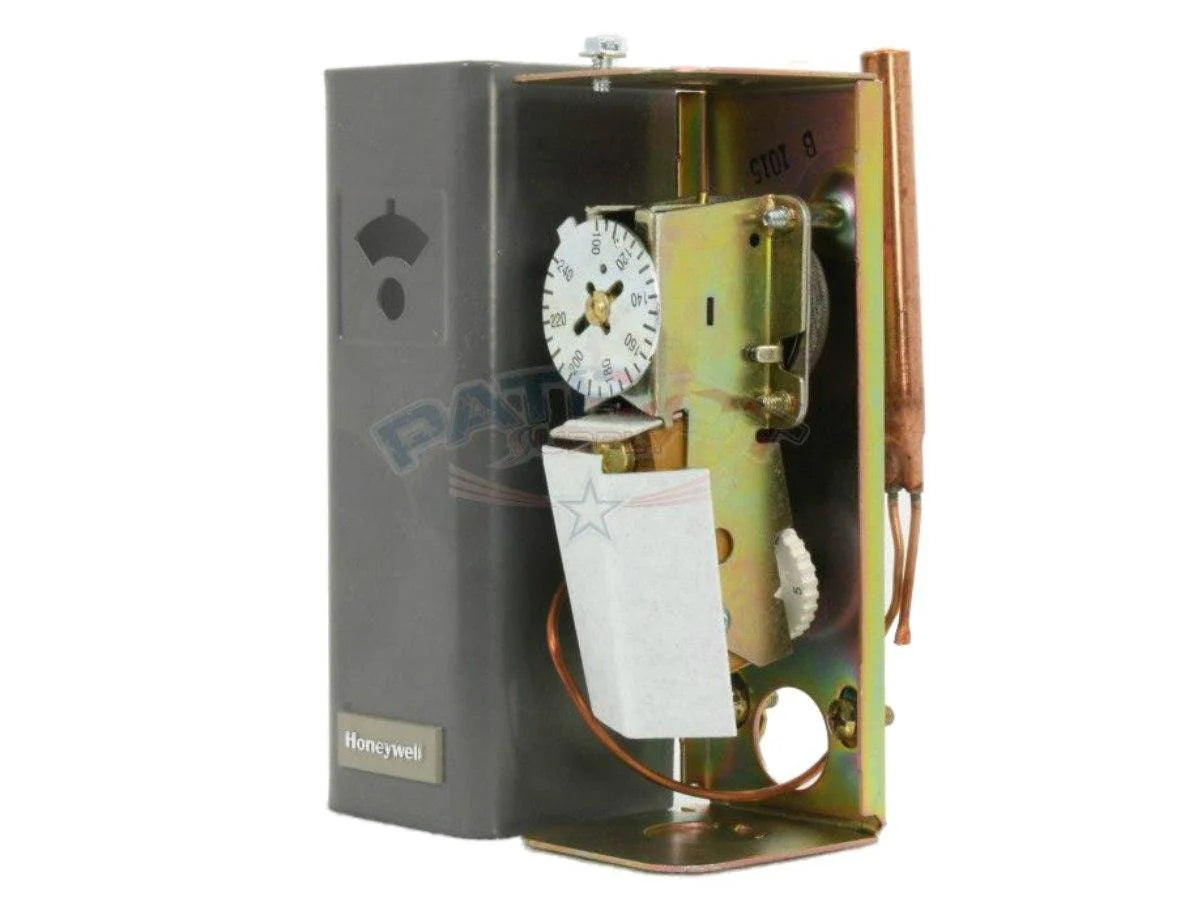

This controller features a visible control point scale and an external adjustment screw, allowing for easy temperature settings.

Product Information

Standard Information

• Brand: Honeywell
• MPN: L4006A2007

Technical Specifications

• Temperature Range: 100-240 degrees Fahrenheit
• Differential: 5-30 degrees Fahrenheit
• Mounting Type: Horizontal/Vertical
• Switch Type: SPST
• Insulation Depth: 3 inches
• Capillary Length: 3 inches
• Bulb Size: 3/8 x 2-7/8 inches Copper
• Dimensions: 5-5/8 inches H x 2 inches W x 2-1/8 inches D
• Application: Suitable for boilers and storage tanks
