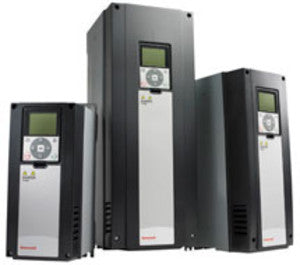

Honeywell HVFD3D3C0750G100C Variable Frequency Drive 75 HP

Product Description

The Honeywell Variable Frequency Drive model HVFD3D3C0750G100C is designed for indoor applications and adheres to the NEMA 1 standard for protection against solid foreign objects. This three-phase variable frequency drive efficiently manages both constant-torque and variable-torque loads. It operates at 460 VAC, providing a power output of 75 horsepower (55 kW). This VFD allows for adjustment of frequency and voltage supplied to electric motors, enabling precise control over motor speed and torque.

• NEMA 1 enclosure designed for indoor use.
• Operates with a power rating of 75 HP and is suitable for three-phase systems.
• Features adjustable acceleration and deceleration times.

Product Highlights

This frequency drive optimizes motor control and enhances energy efficiency in HVAC and industrial applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: HVFD3D3C0750G100C

Technical Specifications

• Phase: Three Phase
• Type: Stand Alone
• Horsepower: 75 HP
• Power Output: 55 kW
• Input Voltage: 460 VAC
• Motor Rating: 0.75 to 250 HP
• Frequency Range: 0-320 Hz
• Acceleration Time: Adjustable 0.1 - 3000 seconds
• Deceleration Time: Adjustable 0.1 - 3000 seconds
• Digital Inputs: 6 configurable Digital Inputs at 24 VDC
• Analog Input: Two (0-10 V or 4-20 mA)
• Digital Output: Open collector, 48V/50 mA
• Relay Outputs: Two SPDT
• Load Max: 8A at 24 VDC or 250 VAC
• Operating Temperature: 14°F to 104°F (–10°C to 40°C)
• Approvals: UL Listed, CE, RoHS
